Product code F21-DH-101, F21-DH-102

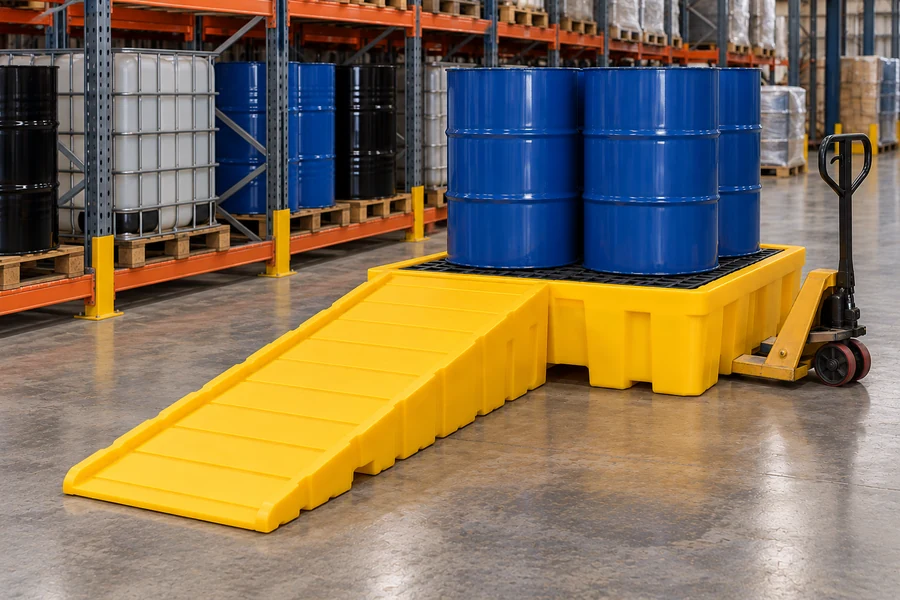

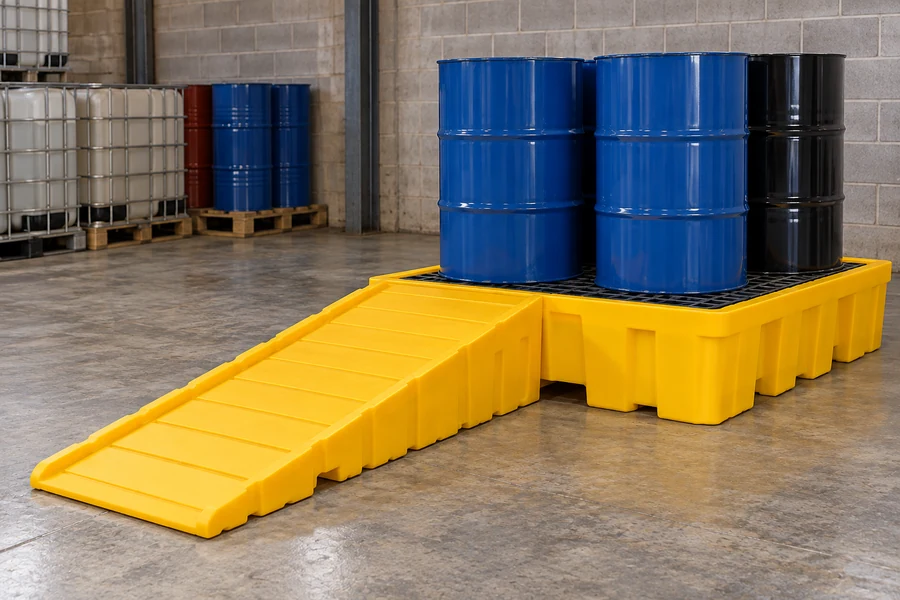

A 200 kilogram drum will not go up a 30 cm step, and a pallet nobody can load is a pallet standing empty. Nine ramps, matched to the pallet height rather than to the drum.
| Product code | F21-DH-101, F21-DH-102 |
|---|---|
| Fits pallet heights | 10, 15, 17 and 30 cm |
| Construction | Single-piece, or supplied in two pieces for handling and storage |
| Material | Moulded polyethylene |
| Colour | Yellow or black, by model |
| Weight | 15 to 23 kg on the single-piece ramps |
| Lead time | Approximately one month for a standard production run; samples in 7–15 days. Confirmed against your specification at quotation. |
These depend on your order, your market or the certificate that covers your run, so we quote them rather than publish one figure that would be wrong for most buyers. Ask and you get the number for your specification.
Before you order: Ramp and pallet must be quoted as a pair. Pallet heights in this range run 10, 15, 15.5, 17, 20, 28.5, 30, 36, 43, 46.5, 50, 60, 62, 70 and 90 cm, and only some have a matching ramp. Tell us the pallet model and we will confirm what fits it.

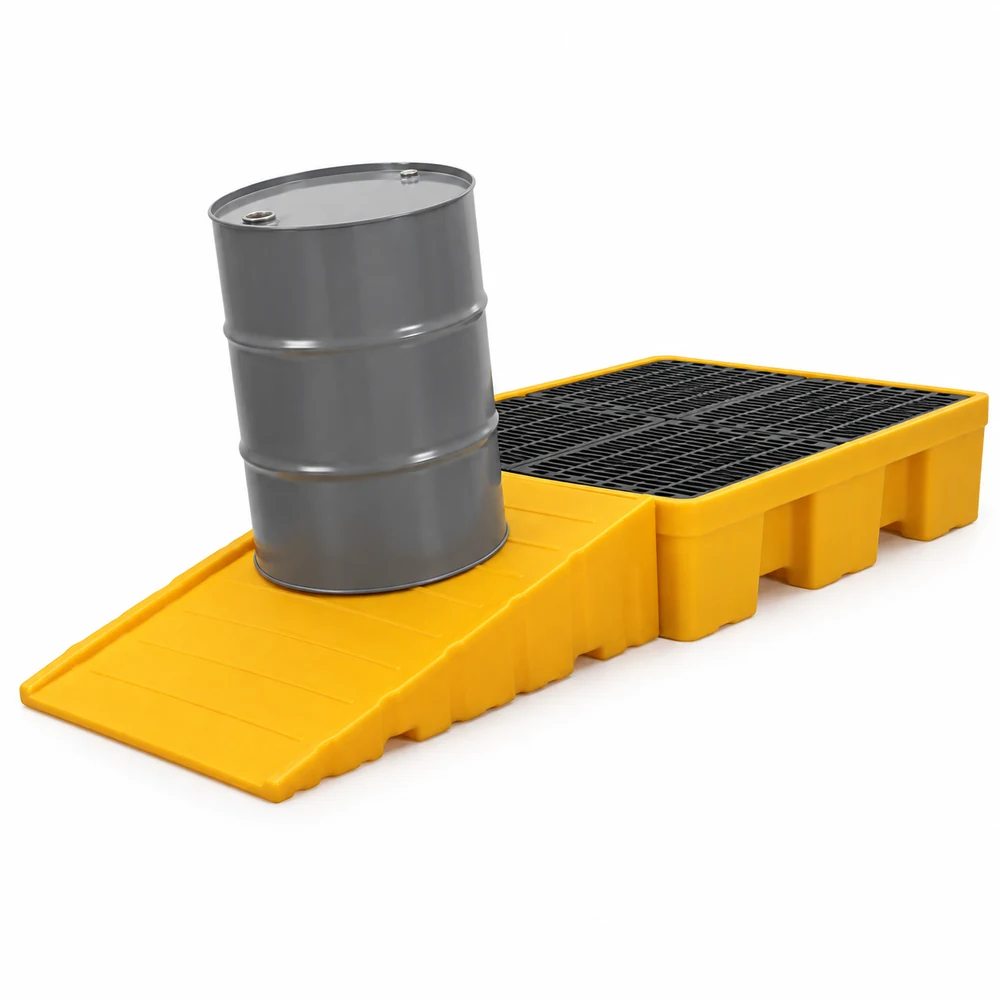

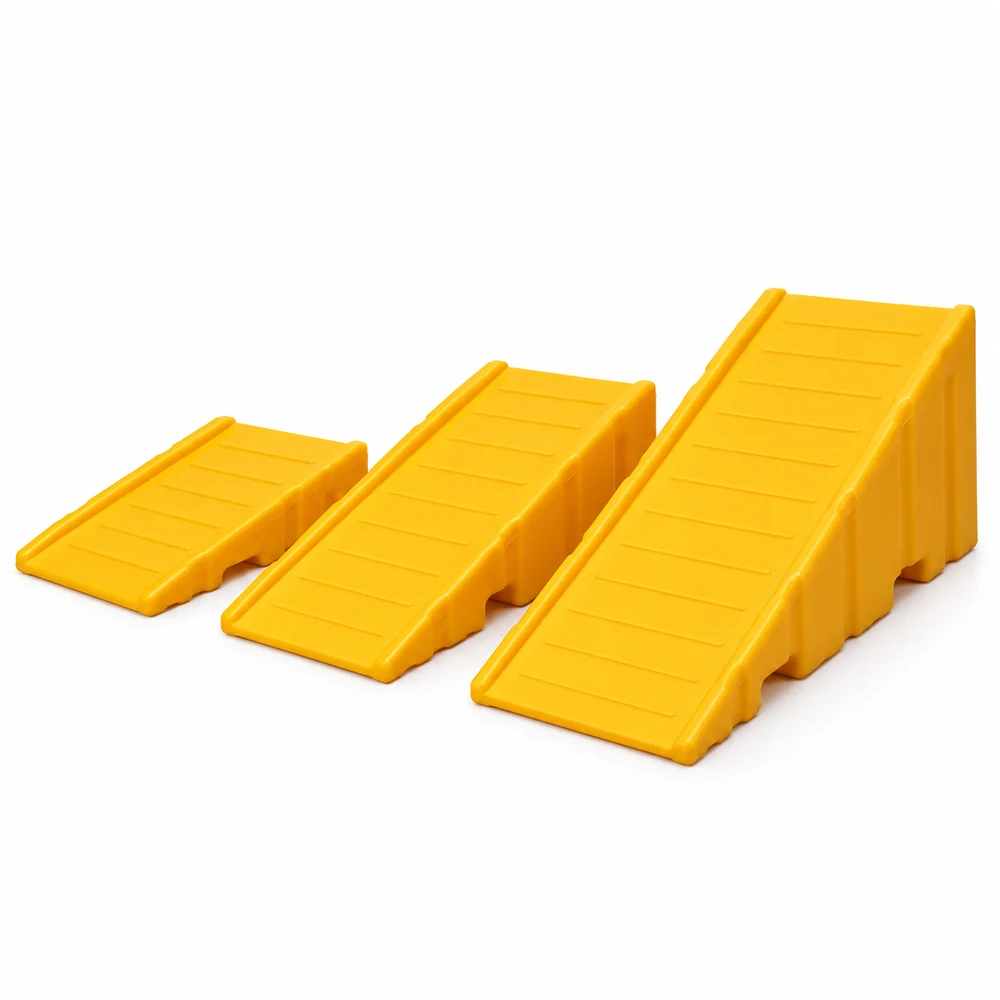

Nine ramps, sized to the pallet height they serve. Pick the ramp by the height of the pallet, not by the drum, and check it against the pallet you are actually buying before you order both.
| Item photo | Model | Fits pallet | Dimensions | Colour | Weight |
|---|---|---|---|---|---|

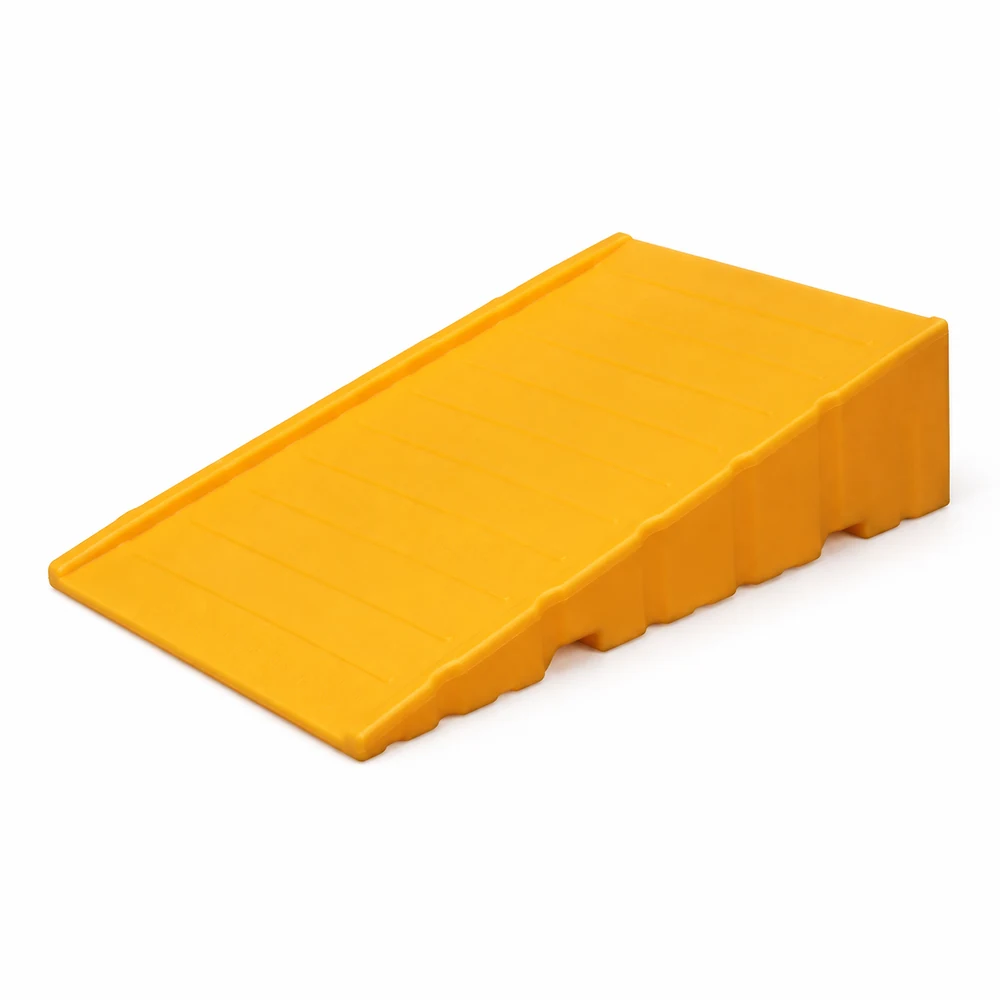

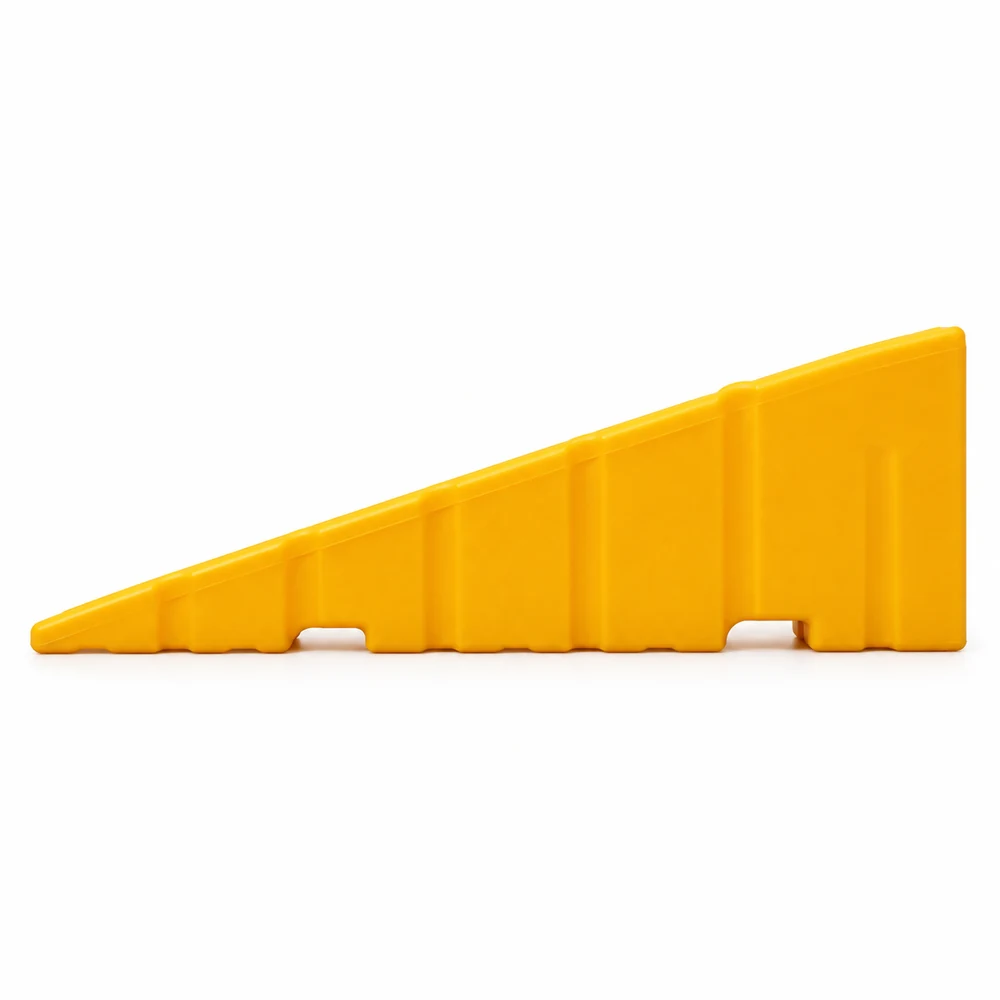

| F21-DH-101 · Single-piece ramp | 15 cm high | 120 × 80 × 15 cm | Yellow | 15 kg |
| F21-DH-101 · Single-piece ramp | 30 cm high | 120 × 80 × 30 cm | Yellow | 17 kg |

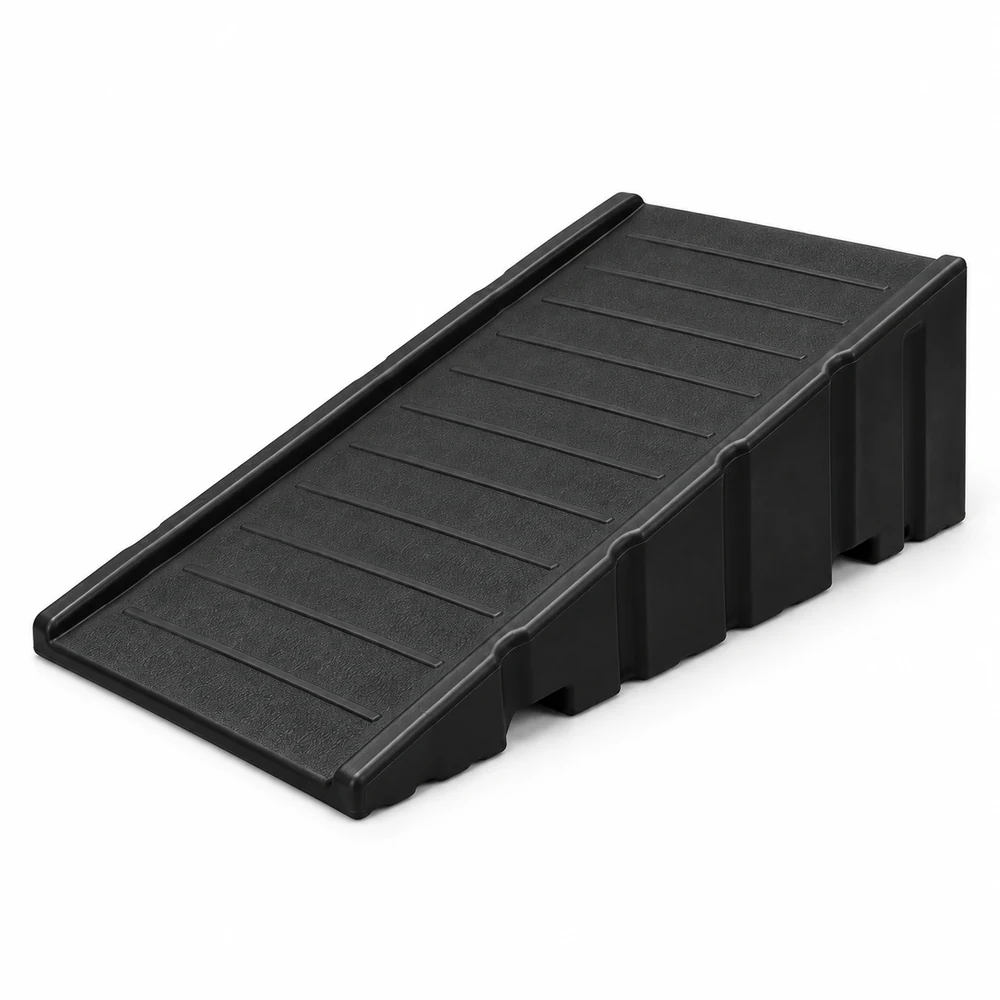

| F21-DH-101 · Single-piece ramp | 30 cm high | 120 × 80 × 30 cm | Black | 23 kg |

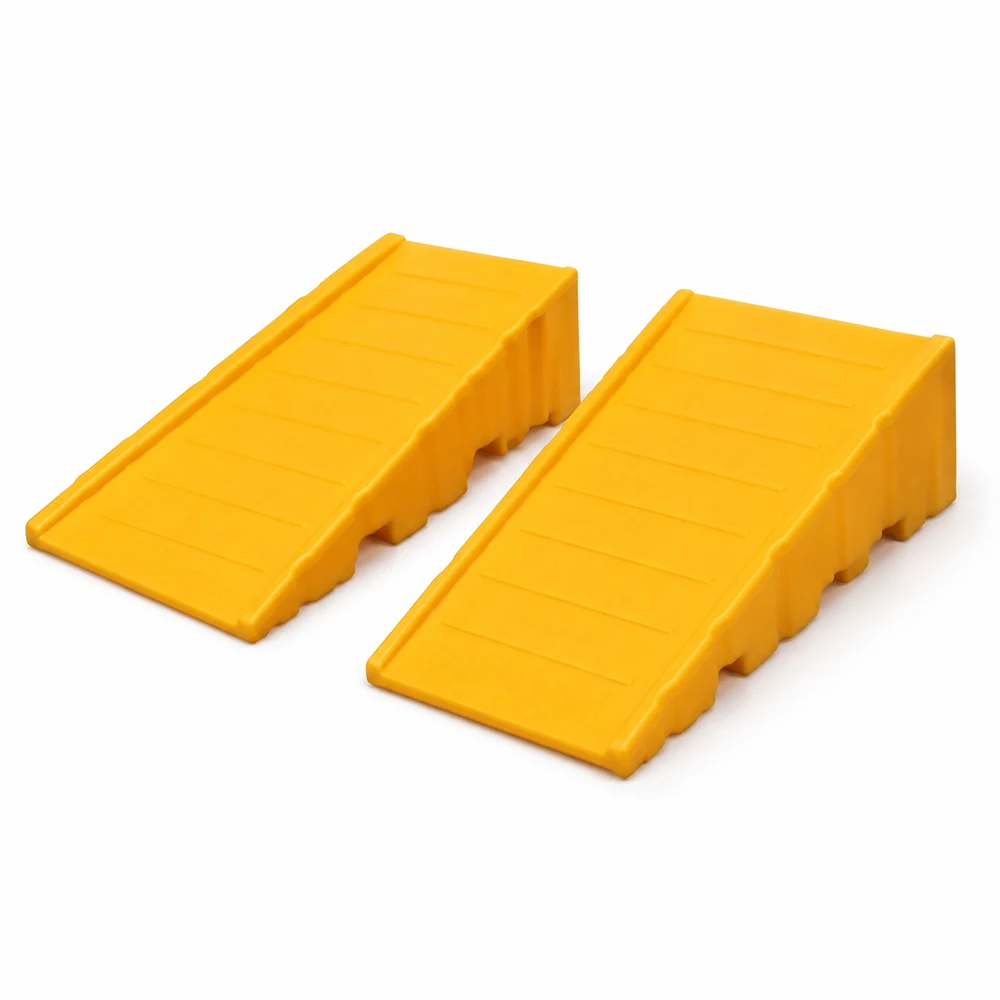

 | F21-DH-102 · Two-piece access ramp | 10 cm high | 100 × 27 × 11 cm | Yellow | On request |
| F21-DH-102 · Two-piece access ramp | 15 cm high | 97 × 38 × 14.5 cm | Yellow | On request |
| F21-DH-102 · Two-piece access ramp | 15 cm high | 100 × 38 × 15 cm | Black | On request |

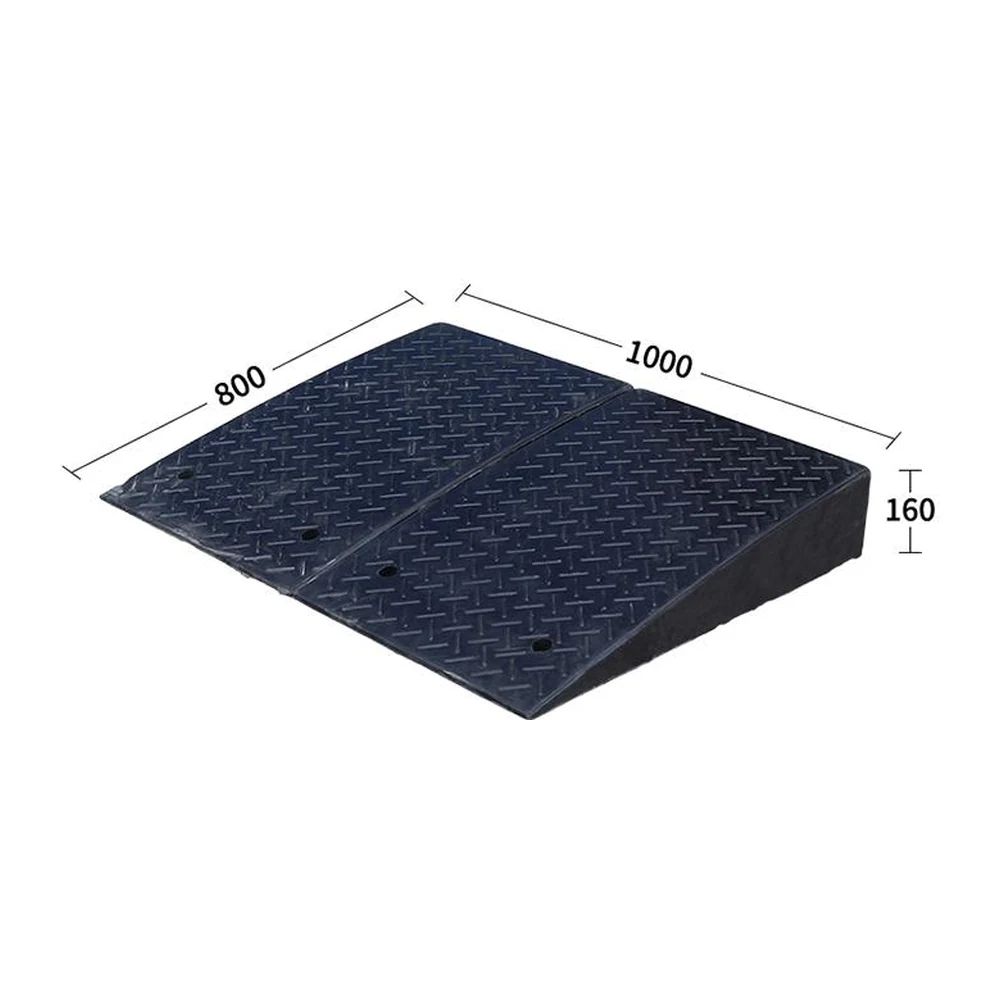

| F21-DH-102 · Two-piece access ramp | 15 cm high | 100 × 80 × 16 cm | Black | On request |
| F21-DH-102 · Two-piece access ramp | 17 cm high | 100 × 50 × 18 cm | Black | On request |
| F21-DH-102 · Two-piece access ramp | 30 cm high | 100 × 80 × 30 cm | Black | On request |
Dimensions are length × width × height and weights are empty, both nominal. Load figures are the manufacturer’s published values; ask us for the test basis before you specify against them. The figure to check your containment rule against is the sump capacity, not the footprint.
The only dimension that matters is the pallet height, and it is the one most often guessed. A 15 cm ramp against a 30 cm pallet is a step, not a slope.

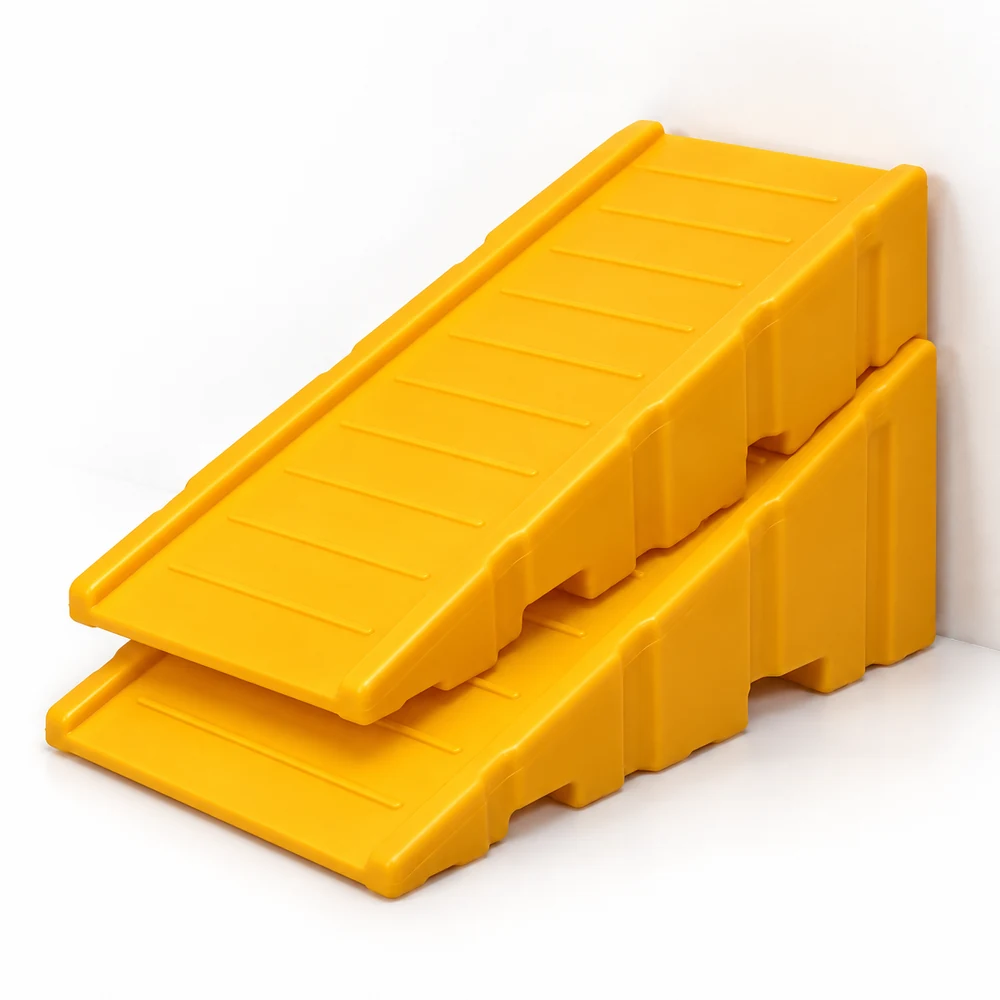

A single-piece 30 cm ramp weighs 23 kg. Split into two, one person moves it and it stores against a wall instead of blocking an aisle.

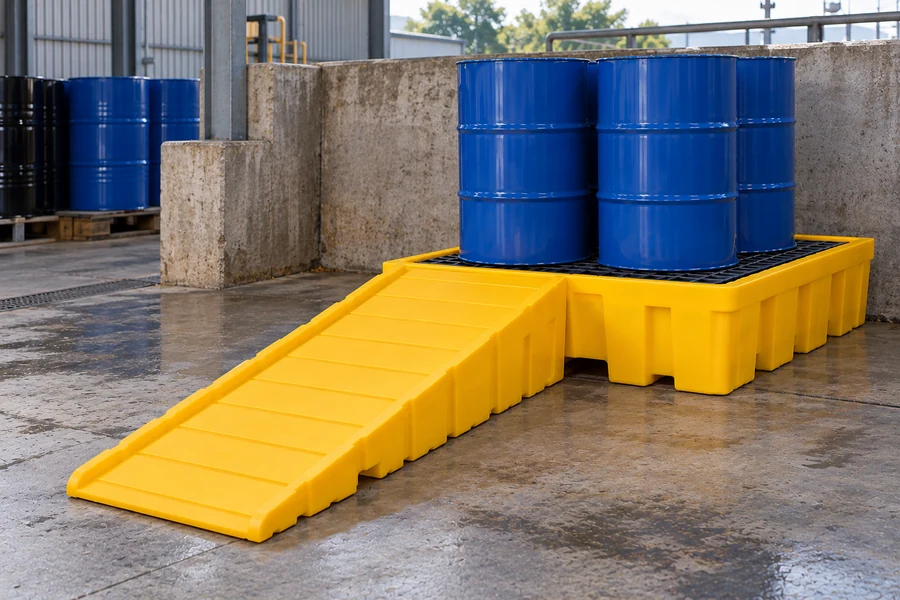

A ramp sits at the low point of the store, which is where a spill runs. Moulded polyethylene tolerates that; a painted steel ramp corrodes from the edge inward.
Ramps are the item that gets left off an order and bought three weeks later at full freight. Quote them together and they ship together.
The regimes that apply to this type of container in each market we ship to, with the detail behind each one a click away. This is what the market asks for; what this particular design already holds is in the specification above.
Orientation for specification, not legal advice, and not a statement that this design holds a given approval. Requirements turn on the exact design, contents and destination, and they change. Tell us the market at enquiry and we confirm what applies to your specification, what we hold and what we would need to obtain.
By the pallet height, not by the drum. It is the one dimension buyers guess, and a 15 centimetre ramp against a 30 centimetre pallet is a step with a slope in front of it. Tell us the pallet model and we will confirm what fits it.
If the pallet is 15 centimetres or higher, yes. A filled 200 litre drum is around 200 kilograms and will not go up a step. A store with no ramp is a store where the pallet stands empty and the drums sit on bare floor.
Weight. A single-piece 30 centimetre ramp is 23 kilograms. Split into two, one person moves it and it stores against a wall rather than blocking an aisle.
10, 15, 17 and 30 centimetres. Not every pallet height in our range has a matching ramp, so quote the ramp with the pallet rather than after it.
A ramp sits at the low point of the store, which is where a spill runs. Moulded polyethylene tolerates that. A painted steel ramp corrodes from the cut edge inward and the corrosion starts where the liquid pools.
Quoted against your order, and best quoted with the pallets. Ramps are the item most often left off and bought three weeks later at full freight for a single unit.
