Product code F21-EW-101 / -102 / -201
The one product in this range that treats the person rather than the liquid. Portable units where there is no water supply, and a plumbed stainless station where there is.
| Product code | F21-EW-101 / -102 / -201 |
|---|---|
| Portable capacity | 30 litres (8 gallons) or 53 litres |
| Portable flow rate | 1.5 litres per minute, 15 minutes or more of run time |
| Portable body styles | Upright yellow, or a teal or green basin unit |
| Combination unit material | 304 stainless steel |
| Eyewash flow, combination unit | 11.4 litres per minute or more |
| Shower flow, combination unit | Over 76 litres per minute |
| Test pressure, combination unit | 1.6 MPa |
| Pipe diameter, combination unit | 38 mm |
| Lead time | Approximately one month for a standard production run; samples in 7–15 days. Confirmed against your specification at quotation. |
These depend on your order, your market or the certificate that covers your run, so we quote them rather than publish one figure that would be wrong for most buyers. Ask and you get the number for your specification.
Before you order: Eyewash is life-safety equipment and the standards are prescriptive about flow, duration, water quality, tepid temperature, siting within ten seconds of the hazard and weekly activation. Tell us the standard your site is assessed against and we will confirm what these units hold before you rely on them.

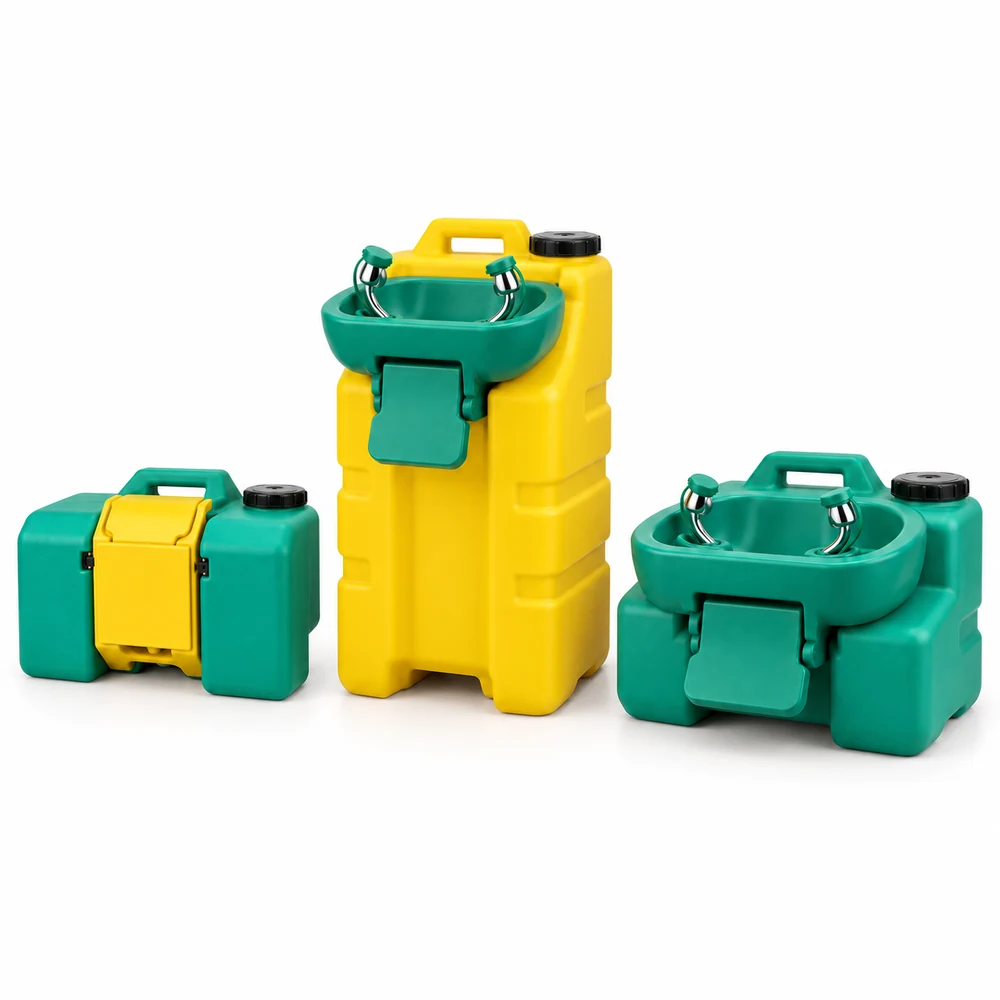

Three portable units and one plumbed station. Flow rate and run time are the two figures a workplace assessment asks for, so they are in the table rather than in a footnote.
| Item photo | Model | Dimensions | Capacity | Flow rate | Weight, empty |
|---|---|---|---|---|---|

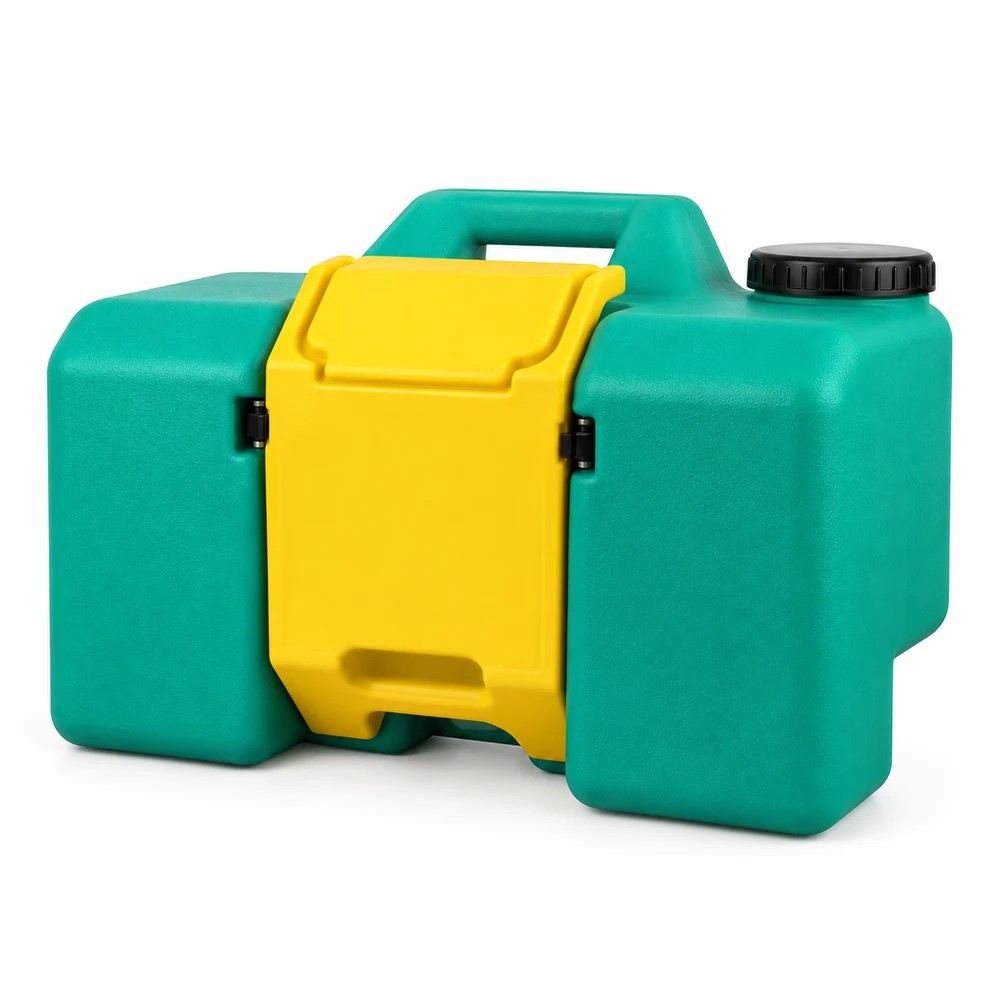

| F21-EW-101 · Portable eyewash, 30 L | 55 × 37 × 25 cm | 30 L (8 gal) | 1.5 L/min, 15 min or more | 3.5 kg |
 | F21-EW-102 · Portable eyewash, 53 L upright | 63 × 49 × 28 cm | 53 L | 1.5 L/min, 15 min or more | 7.15 kg |
| F21-EW-102 · Portable eyewash, 53 L basin | 54 × 49 × 58 cm | 53 L | 1.5 L/min, 15 min or more | 7.7 kg |

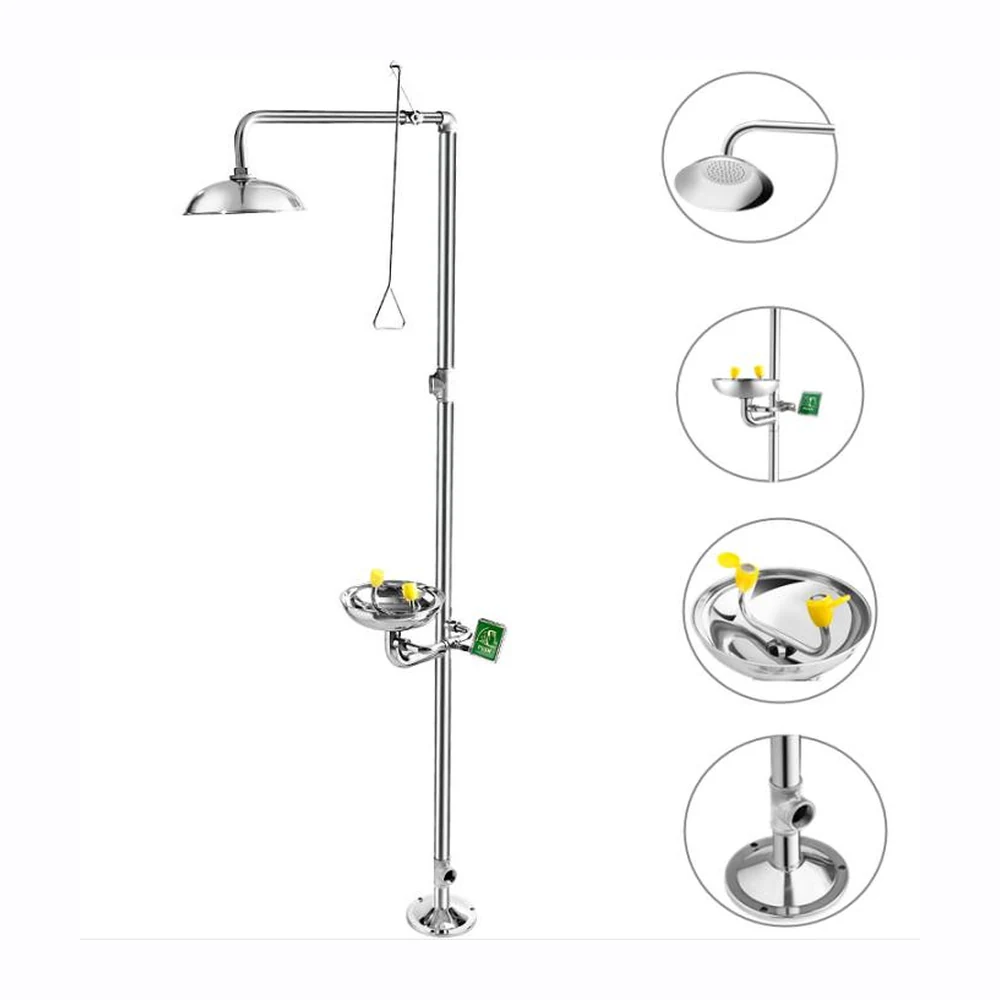

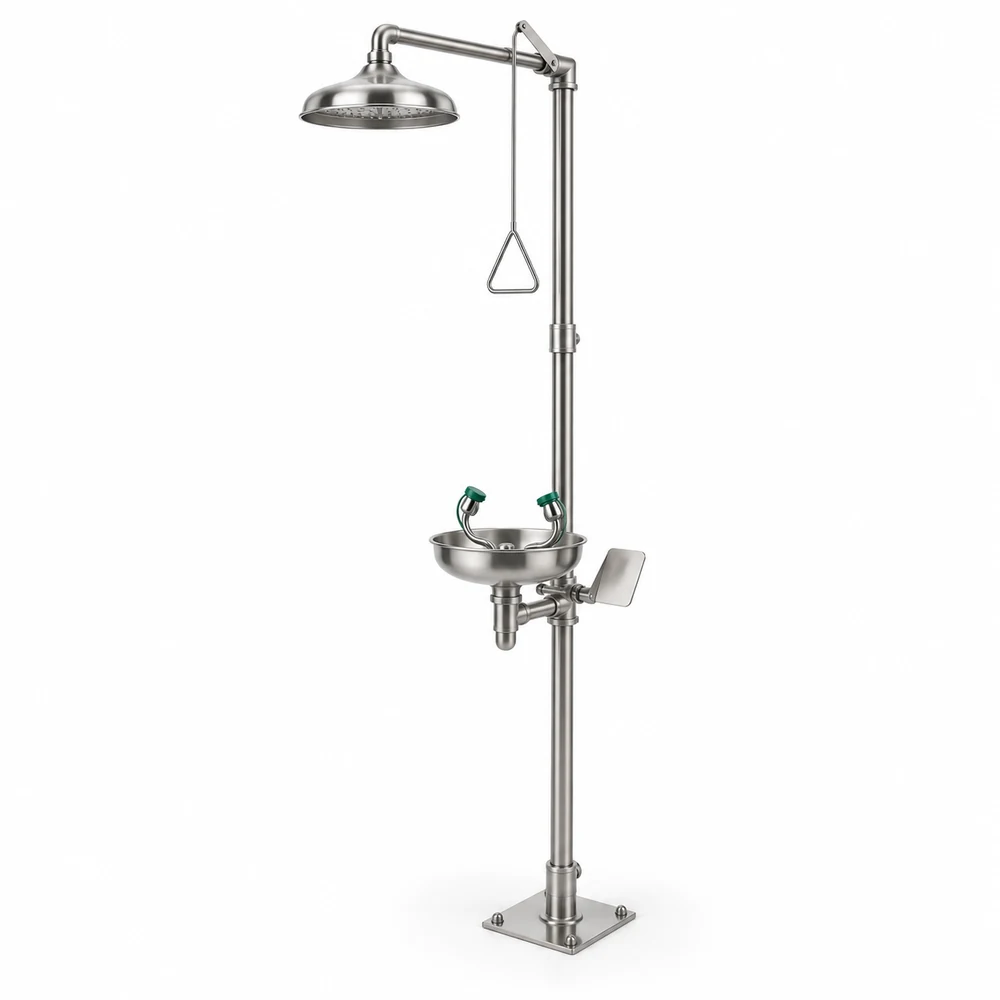

 | F21-EW-201 · Combination eyewash and shower | 230 × 76 × 47 cm | Plumbed supply | Eyewash 11.4 L/min, shower over 76 L/min | 14 kg |
Dimensions are length × width × height and weights are empty, both nominal. Load figures are the manufacturer’s published values; ask us for the test basis before you specify against them. The figure to check your containment rule against is the sump capacity, not the footprint.
Every eyewash standard is written around a fifteen minute flush, because that is how long it takes to dilute a chemical off an eye. A unit that runs dry at four minutes has failed the only test it exists for.

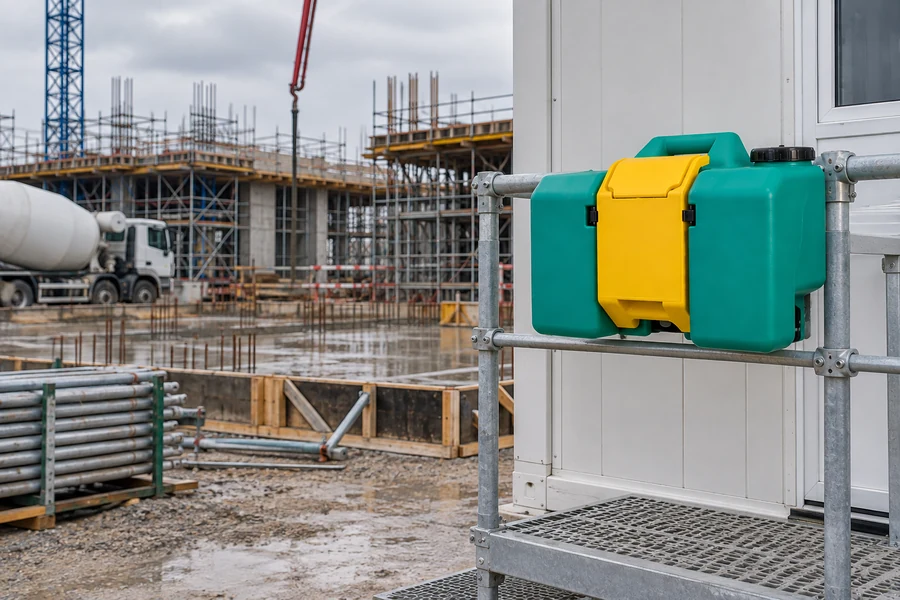

A gravity-fed 53 litre unit works on a construction site, in a yard or on a vehicle. That is most of the places a chemical is actually decanted.

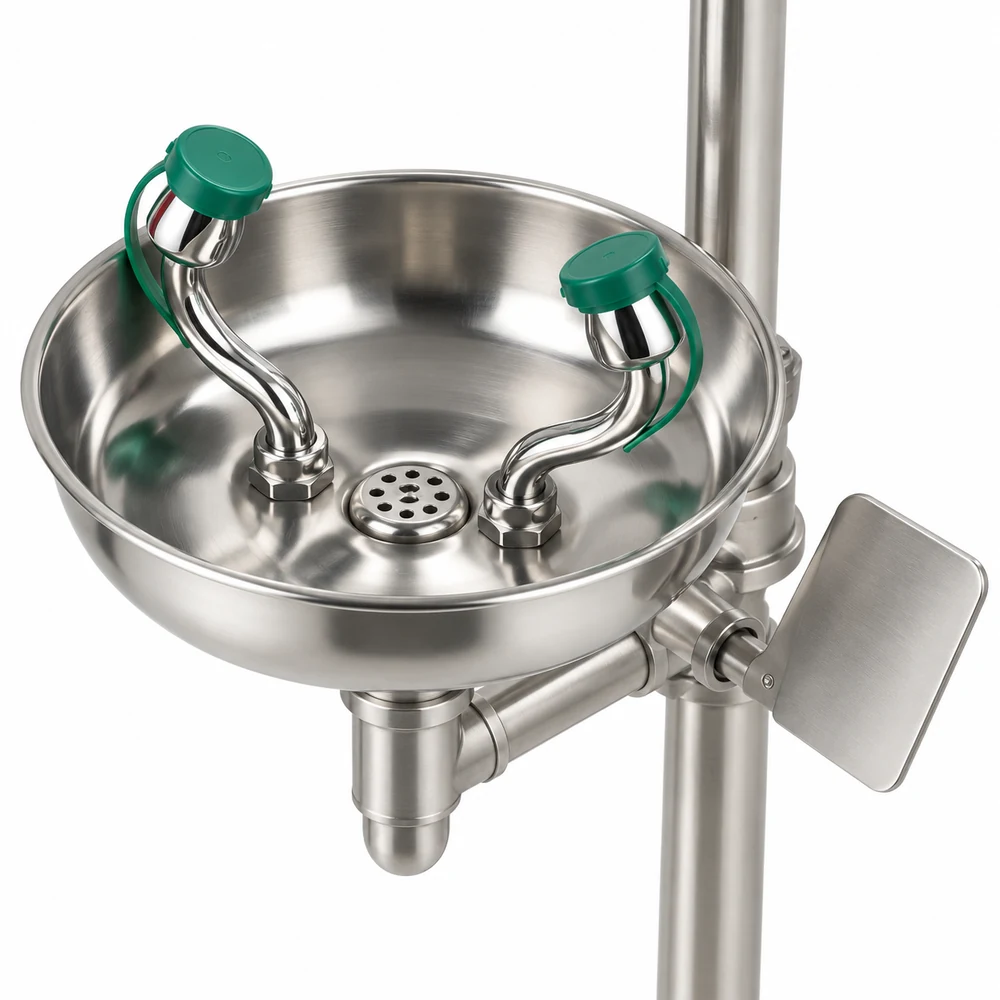

304 stainless on a unit that sits under a permanent water supply for a decade, outdoors, and has to work the first time it is pulled. Painted steel rusts at the joints and the joints are the product.

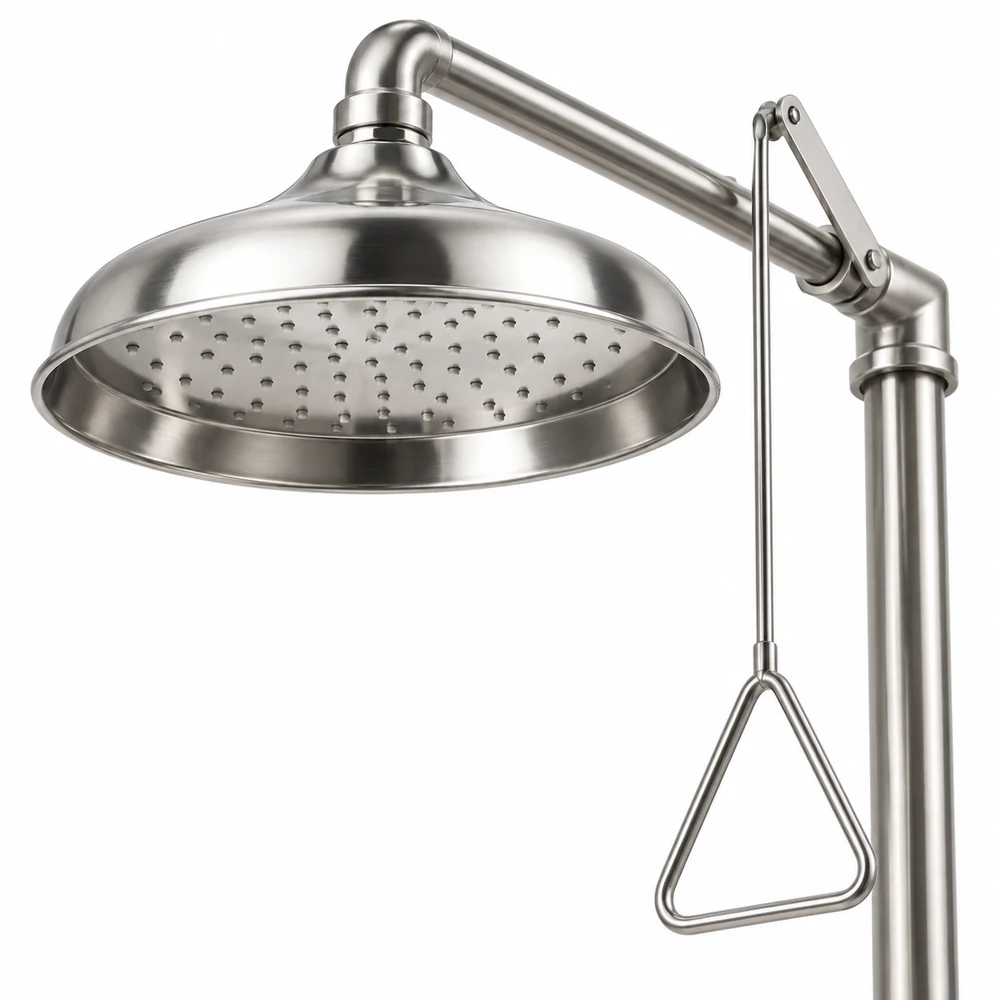

A splash rarely limits itself to an eye. The combination unit runs both from one valve arrangement so nobody has to choose which one to reach for.
The regimes that apply to this type of container in each market we ship to, with the detail behind each one a click away. This is what the market asks for; what this particular design already holds is in the specification above.
Orientation for specification, not legal advice, and not a statement that this design holds a given approval. Requirements turn on the exact design, contents and destination, and they change. Tell us the market at enquiry and we confirm what applies to your specification, what we hold and what we would need to obtain.
Fifteen minutes, because that is how long it takes to dilute a chemical off an eye. Every standard in this area is written around that figure, and a unit that runs dry at four minutes has failed the only test it exists for. Our portable units run 15 minutes or more at 1.5 litres a minute.
ANSI/ISEA Z358.1 in the United States, EN 15154 in Europe and AS 4775 in Australia. They are prescriptive about flow, duration, water temperature, siting and weekly activation. Tell us the standard your site is assessed against and we will confirm what these units hold before you rely on them.
Plumbed where there is a permanent water supply and the position is fixed. Portable where there is not, which covers most yards, construction sites, vehicles and remote positions. A gravity-fed 53 litre unit works with no supply at all.
Because it sits under a permanent water supply for a decade, often outdoors, and has to work the first time somebody pulls it. Painted steel rusts at the joints and the joints are the product. This one is 304 stainless throughout.
11.4 litres a minute or more at the eyewash and over 76 litres a minute at the shower, tested to 1.6 MPa on 38 millimetre pipe. A splash rarely limits itself to an eye, which is why both run from one station.
Yes, and it is the requirement most often missed. Cold water makes a casualty pull away from the stream before the fifteen minutes are up, which defeats the flush. Tepid delivery is a site provision as much as a product one, so raise it with us at specification.
Quoted against your order. Tell us the number of positions and the standard you are assessed against, and we will confirm both along with what certification we hold.
