Product code F21-BT-101 / -102 / -103 / -201, F21-DT-100
Most spills are small and happen where the work happens. Twelve trays and pallets covering the bench, the counter and the pallet of pails that a drum-sized bund was never meant to catch.
| Product code | F21-BT-101 / -102 / -103 / -201, F21-DT-100 |
|---|---|
| Sump capacity | 4 to 150 litres, by model |
| Material | LLDPE and polyethylene by model |
| Grate | Black grate on the bench trays; pail pallet available as body only, without grate |
| Pour spout | Fitted to the 53 cm tabletop tray for emptying without lifting |
| Pail pallet capacity | 20 litre pails, on a 1150 or 1200 mm footprint |
| Colour | Yellow, white, blue or black by model |
| Load rating | 20 kg on the bench trays to 3,000 kg on the pail pallets |
| Lead time | Approximately one month for a standard production run; samples in 7–15 days. Confirmed against your specification at quotation. |
These depend on your order, your market or the certificate that covers your run, so we quote them rather than publish one figure that would be wrong for most buyers. Ask and you get the number for your specification.
Before you order: Bench trays are containment, not a chemical-resistant work surface. Load ratings on the small trays run as low as 20 kg, so check the weight of what you are standing on one before you specify it as a work platform.
Twelve trays and pallets, from a 4 litre bench tray to a 145 litre pail pallet. Two load figures mean static / dynamic; UDL is a uniformly distributed load.
| Item photo | Model | Dimensions | Sump | Load | Weight |
|---|---|---|---|---|---|

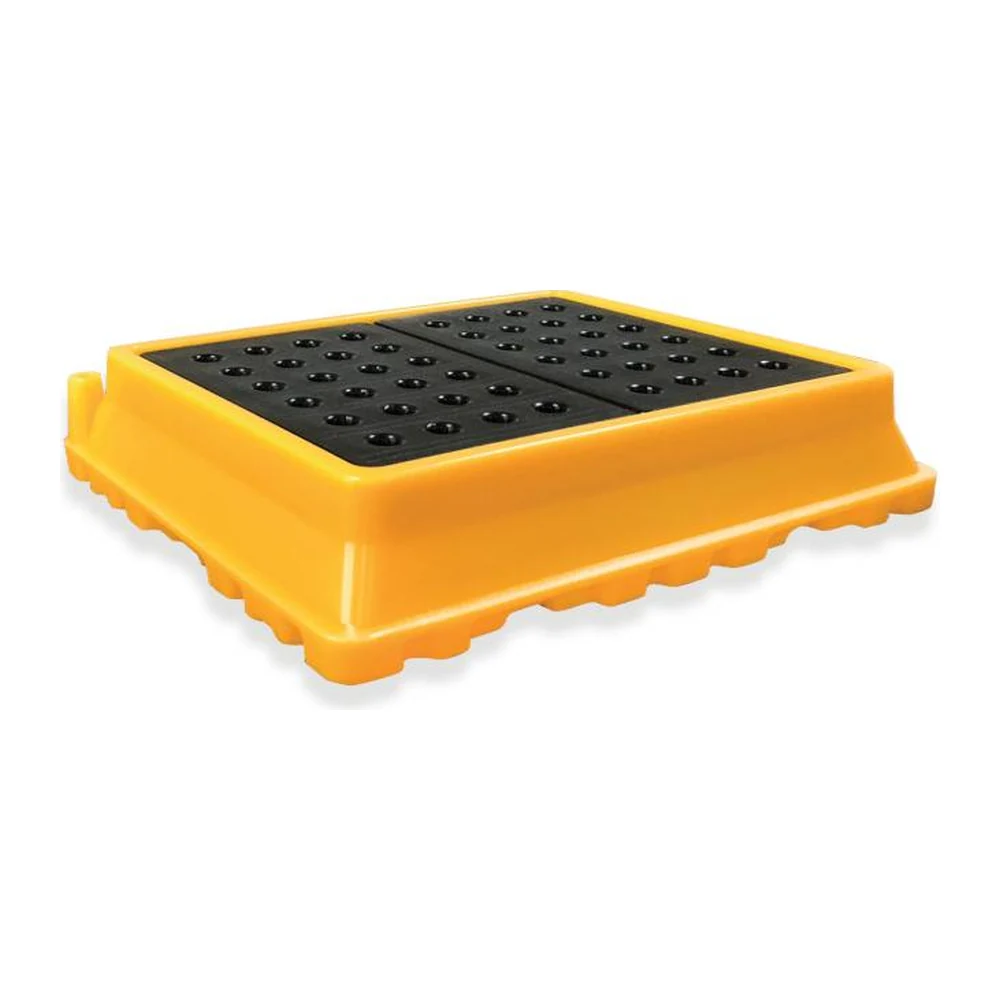

 | F21-BT-101 · Tabletop tray, 53 cm | 53 × 43 × 11 cm | 11 L | 100 kg UDL | 3.6 kg |
| F21-BT-101 · Tabletop tray, 49 cm | 49 × 36 × 9.5 cm | 10 L | 20 kg static | 1.4 to 2 kg |

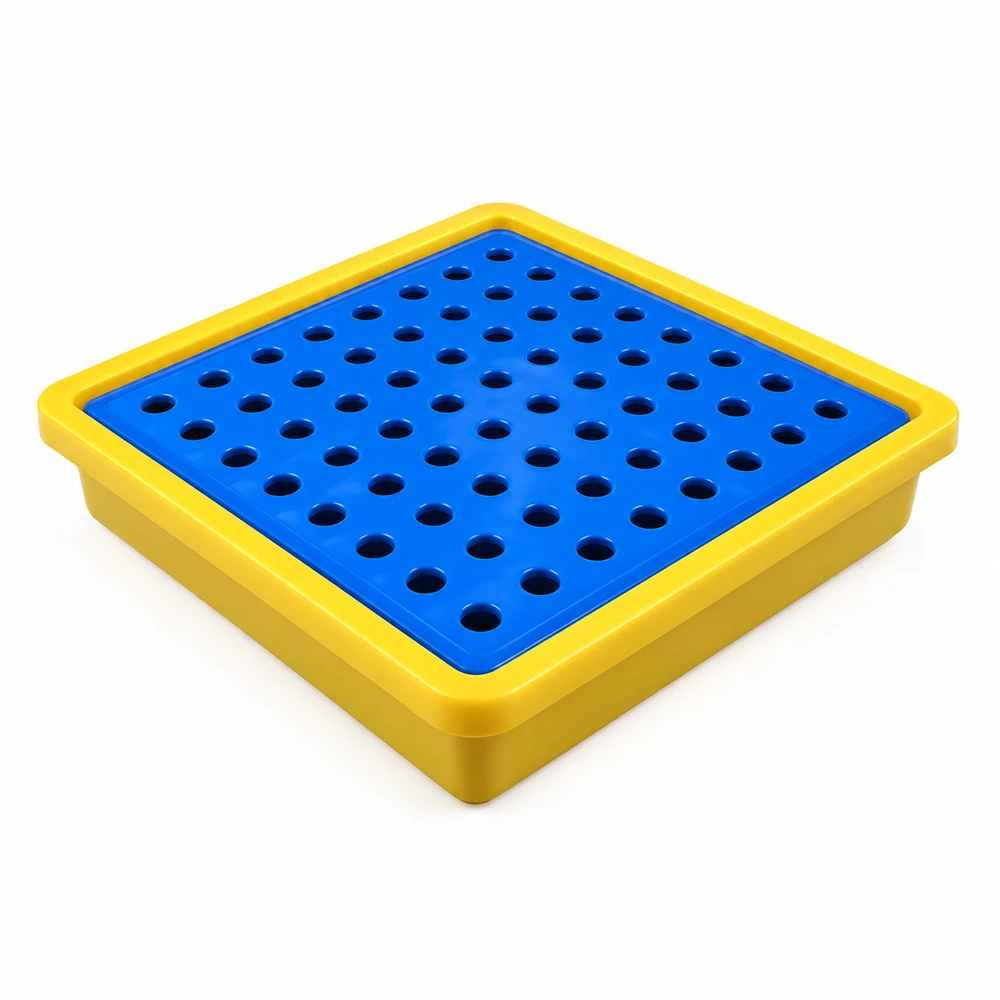

| F21-BT-102 · Compact bench tray | 34 × 34 × 6.5 cm | 4 L | 20 kg | 1.2 kg |

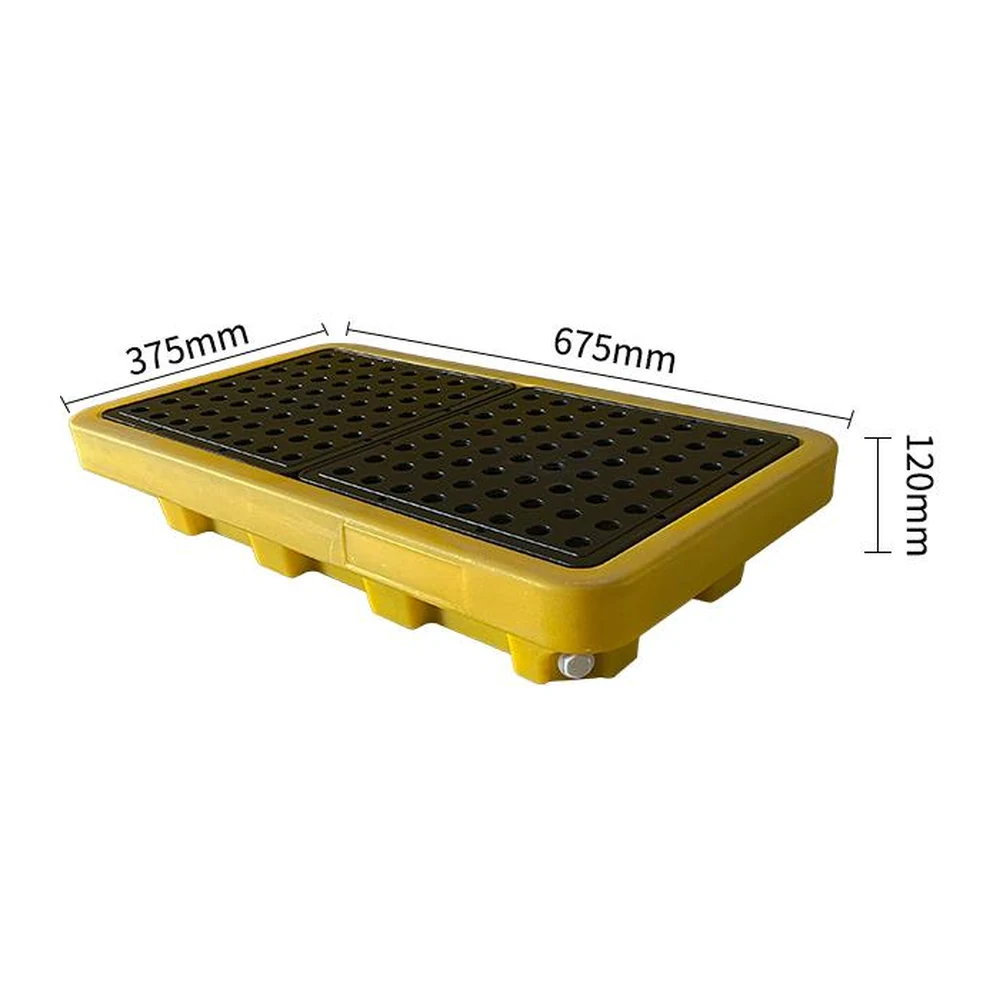

 | F21-BT-103 · Small-container tray | 67.5 × 37.5 × 12 cm | 20 L | 80 kg | 3 kg |

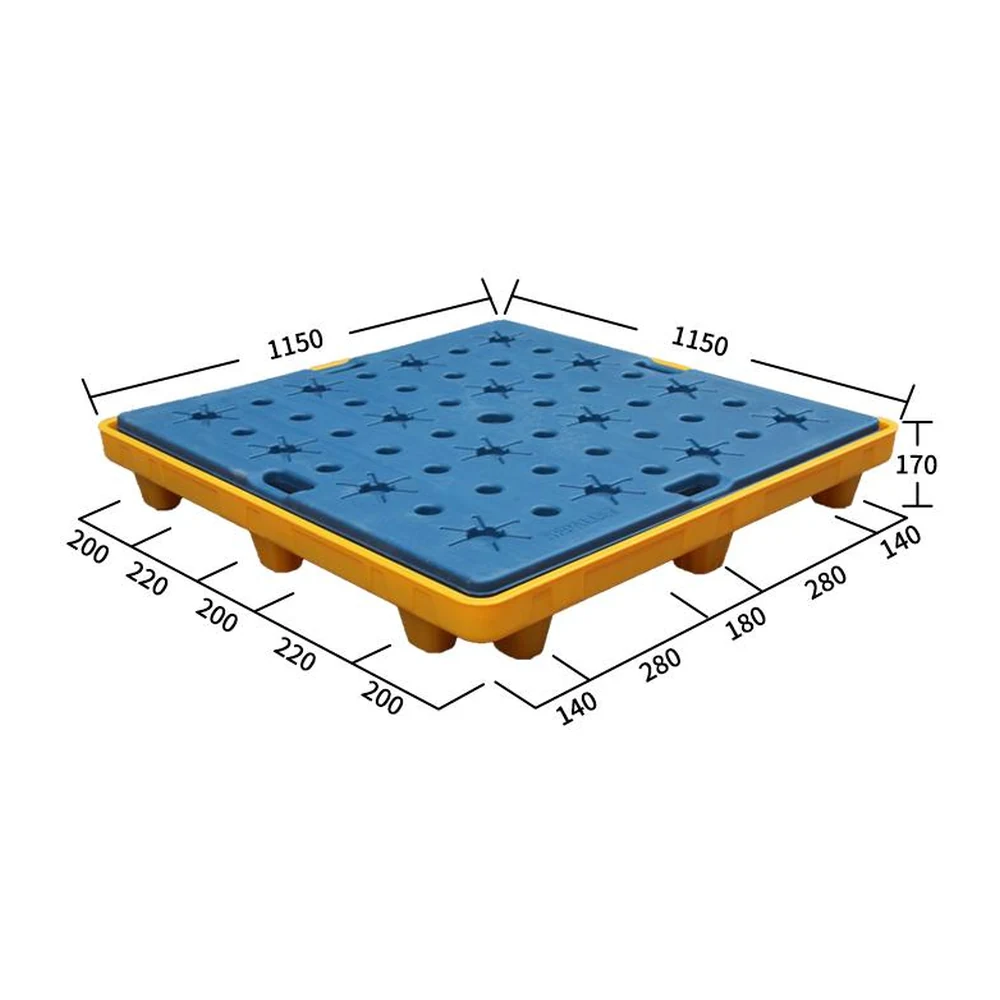

 | F21-BT-201 · Pail pallet, 1150 | 115 × 115 × 17 cm | 50 L | 3,000 / 1,500 kg | 20 kg |
| F21-BT-201 · Pail pallet, 1150 body only | 115 × 115 × 17 cm | 50 L | 3,000 / 1,000 kg | 11 kg |
| F21-BT-201 · Pail pallet, 1200 | 120 × 120 × 15 cm | 145 L | 3,000 kg static | 24 kg |
 | F21-DT-100 · Open drip tray, 10 L | 57 × 38.5 × 5 cm | 10 L | 80 kg static | 1 kg |
| F21-DT-100 · Open drip tray, 32 L | 64.5 × 49 × 12 cm | 32 L | 200 kg static | 2 kg |
| F21-DT-100 · Open drip tray, 75 L | 100 × 55 × 15 cm | 75 L | 600 kg static | 4.6 kg |
| F21-DT-100 · Open drip tray, 110 L | 100 × 100 × 12 cm | 110 L | 1,500 kg static | 7.3 kg |
| F21-DT-100 · Open drip tray, 150 L | 120 × 120 × 12 cm | 150 L | 3,000 kg static | 8.5 kg |
Dimensions are length × width × height and weights are empty, both nominal. Load figures are the manufacturer’s published values; ask us for the test basis before you specify against them. The figure to check your containment rule against is the sump capacity, not the footprint.

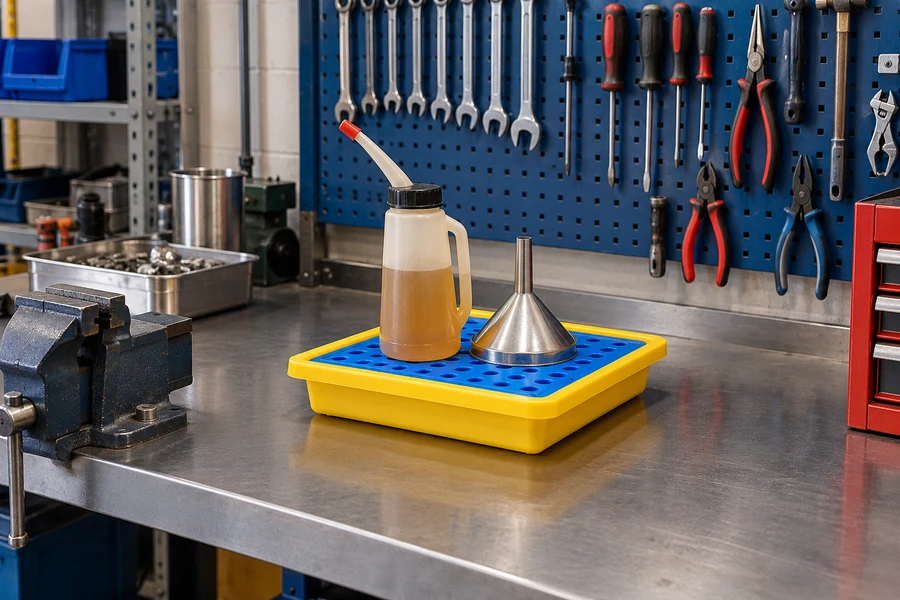

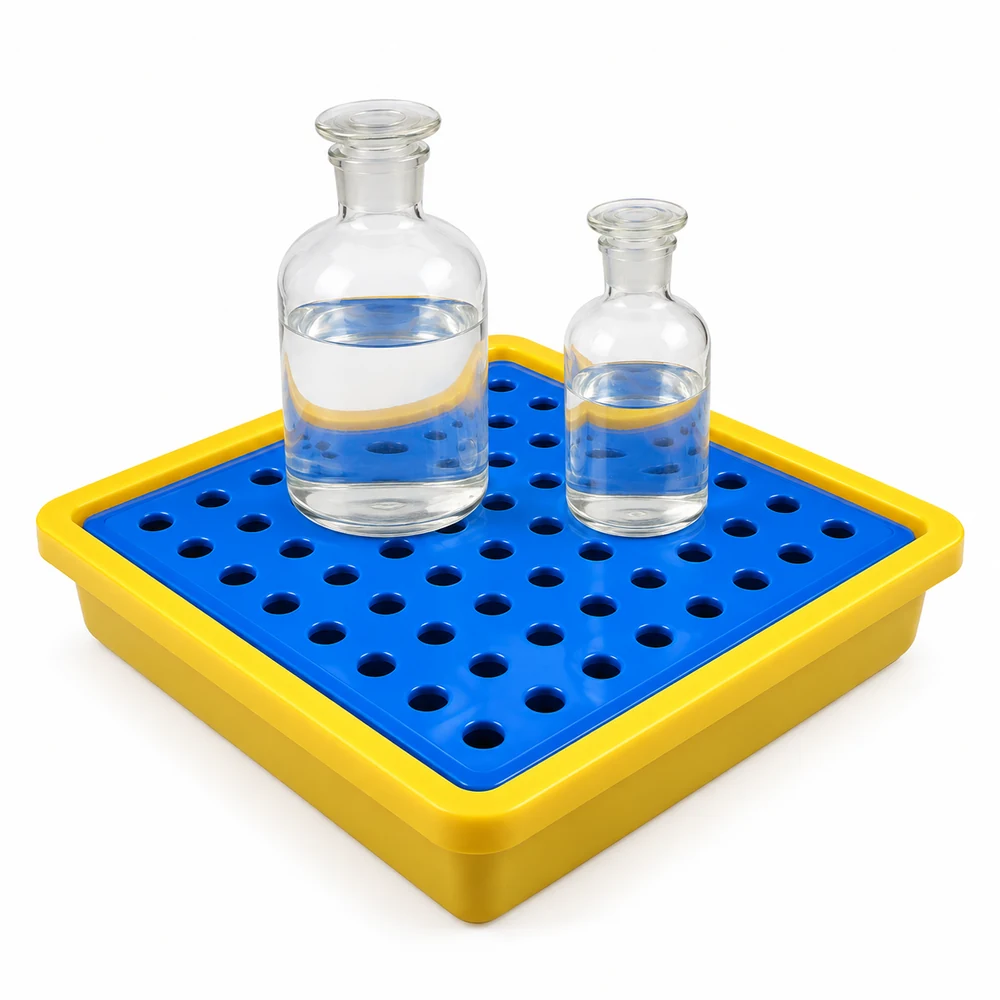

A beaker, a decanting jug and a part-used tin all spill, and none of them justify a 130 cm pallet. A 34 cm tray fits beside the work and gets used because it is in reach.

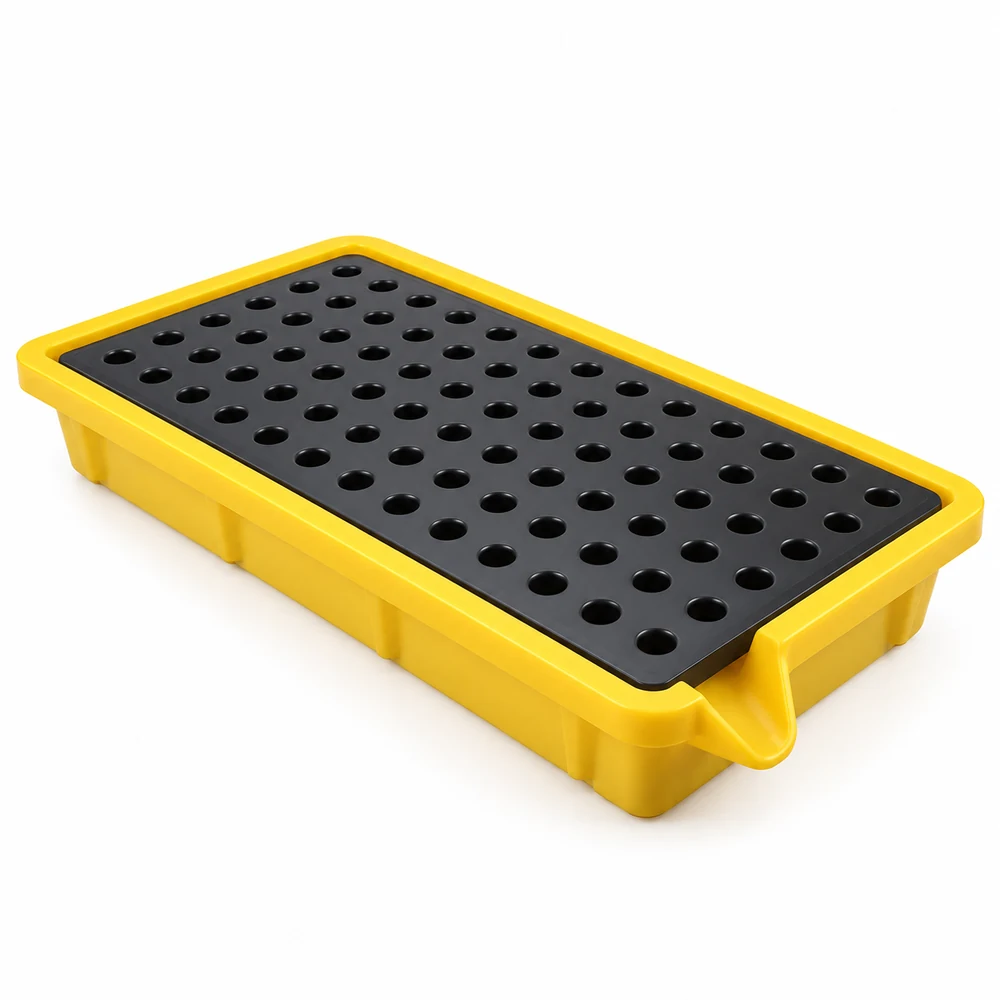

Emptying a full bench tray without a spout means lifting 11 litres over a lip. The spout turns that into a controlled pour into a waste container.

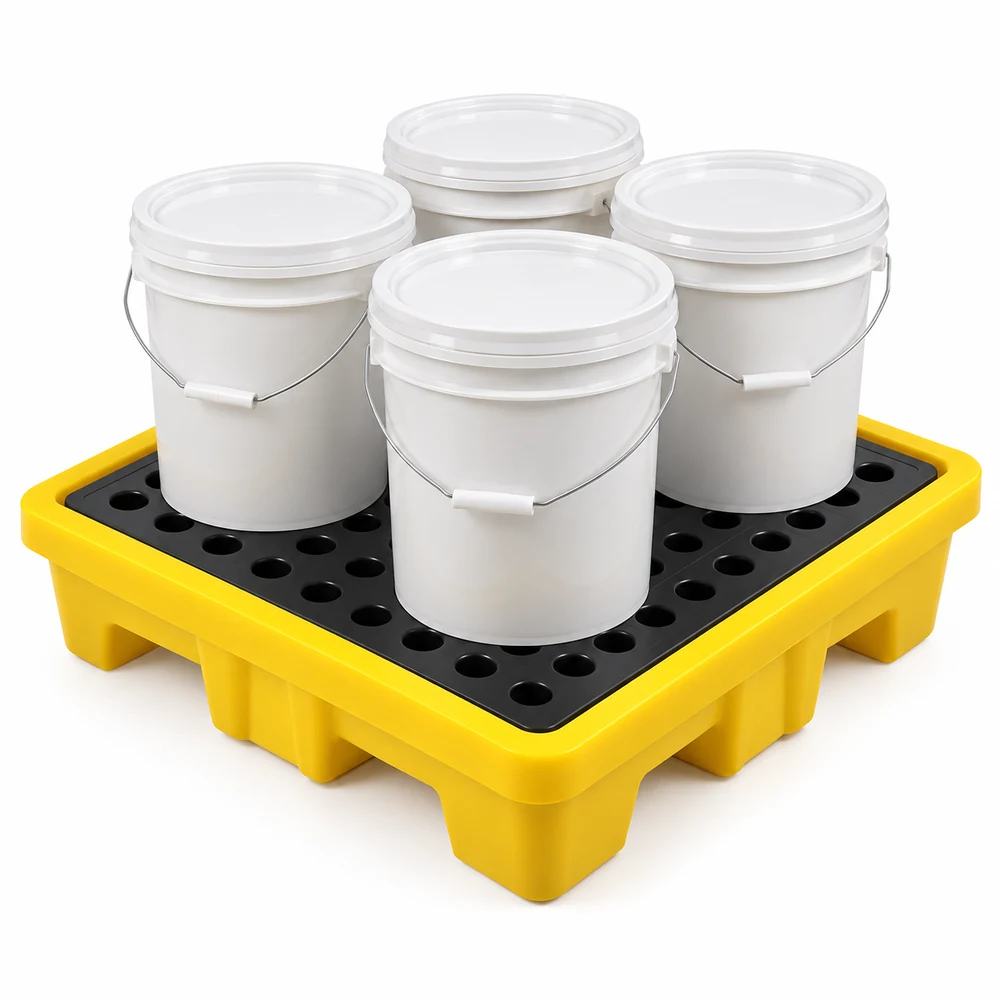

A drum pallet sized for four 200 litre drums wastes deck under 20 litre pails. The 1150 and 1200 pallets carry a proper pail load, and the body-only version halves the weight where a grate is not needed.

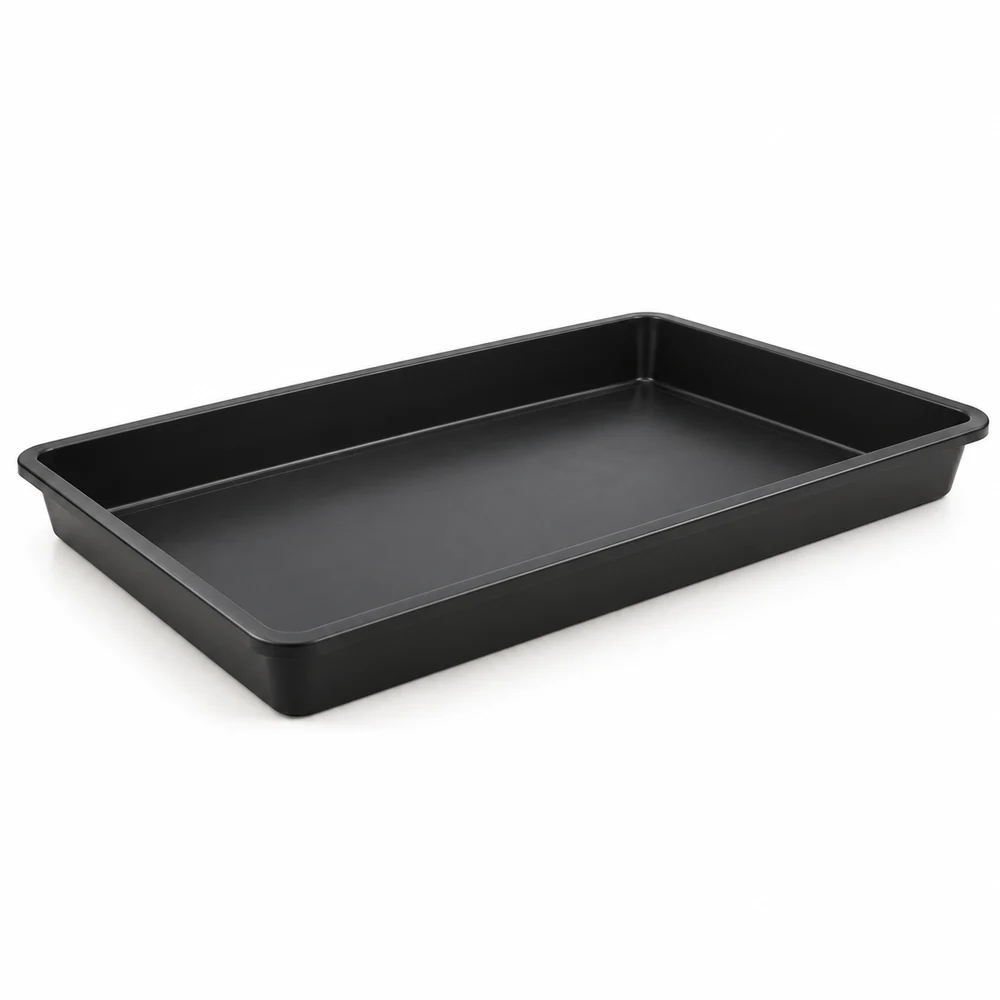

Five sizes from 10 to 150 litres with no grate and no sides to climb. They go under a leaking gearbox or a decanting station today and somewhere else next week.
The regimes that apply to this type of container in each market we ship to, with the detail behind each one a click away. This is what the market asks for; what this particular design already holds is in the specification above.
Orientation for specification, not legal advice, and not a statement that this design holds a given approval. Requirements turn on the exact design, contents and destination, and they change. Tell us the market at enquiry and we confirm what applies to your specification, what we hold and what we would need to obtain.
The 34 centimetre compact tray for a single working position, the 49 or 53 centimetre tabletop tray where decanting happens, and the 67.5 centimetre small-container tray for a row of bottles. The tray that gets used is the one within reach of the work, which usually means the smallest one that fits.
Because emptying 11 litres over a lip is how a contained spill becomes an uncontained one. The spout turns that into a controlled pour into a waste container.
No. Load ratings on the bench trays run from 20 kilograms static, which is a few bottles. The pail pallets are rated at 3,000 kilograms and are the load-bearing product in this range.
Twenty litre pails, on a 1150 or 1200 millimetre footprint. A drum pallet sized for four 200 litre drums wastes deck under pails, and the pail pallets carry a proper pail load on the same floor area.
The 1150 pail pallet without its grate, at 11 kilograms instead of 20. Specify it where containers sit directly in the sump and nothing has to be walked on, and it halves the weight and the freight.
Where the position is temporary or unplanned: under a leaking gearbox, a decanting station or a machine being serviced. Five sizes from 10 to 150 litres, no grate, no sides to climb, and they move to the next job next week.
Quoted against your order. These are light and nest well, so they are one of the few products in this range where the unit price still governs the landed cost.
