Product code F21-ST-101 / -201 / -401 / -501
The specification that polyethylene cannot meet. Double-layer 3 mm sheet steel, seven models, for stores where the containment itself has to be non-combustible.
Documents for this design: the specification sheet and drawing. Ask for them with your enquiry and check them against your own requirements before you order.
Samples take 7 to 15 days. Tell us the model, the finish and the delivery country.
The minimum order is quoted per model and customisation. A standard production run takes about one month, confirmed against your specification at quotation.
| Product code | F21-ST-101 / -201 / -401 / -501 |
|---|---|
| Capacity | One, two or four 200 litre drums, or one or two 1,000 litre IBC tanks |
| Sump capacity | 203 to 1,400 litres, by model |
| Construction | Double-layer 3 mm sheet steel |
| Finish | Powder coated red, yellow or blue, or hot-dip galvanised |
| Entry | 100 mm forklifting height for pallet-truck handling on the drum models |
| Mobile option | Single and two-drum models available with wheels and a handle |
| Load rating | 220 to 3,800 kg UDL, by model |
| Lead time | Approximately one month for a standard production run; samples in 7–15 days. Confirmed against your specification at quotation. |
These depend on your order, your market or the certificate that covers your run, so we quote them for your specification on request.
Before you order: Steel is non-combustible but it is not chemically inert. Acids and some aqueous salts attack both galvanising and powder coat, and a corroded sump leaks exactly where it is not being watched. Confirm the coating against your contents before you specify. The drum models hold 203 to 216 litres, enough for one burst 200 litre drum. That is short of the 226 litres a 110 per cent bund needs for a 205 litre drum, so check the sump against your rule. The IBC models hold 1,200 and 1,400 litres.

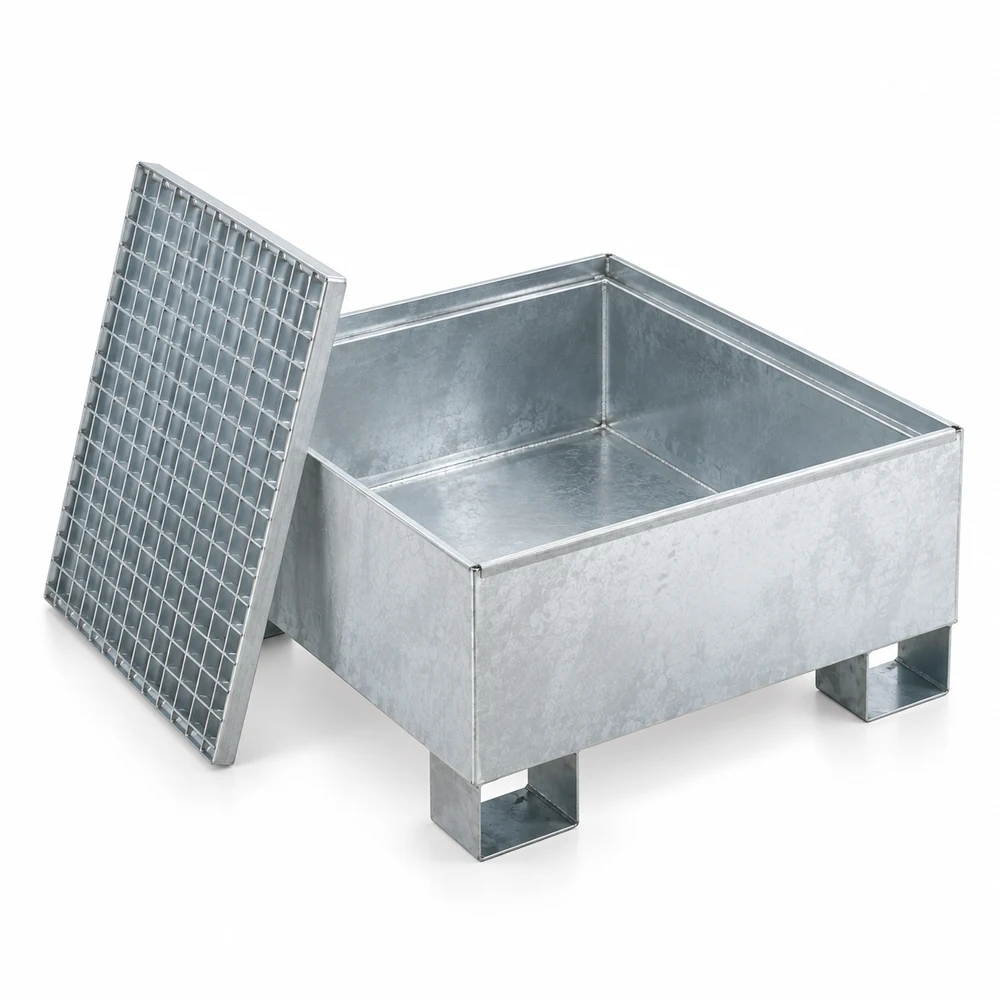

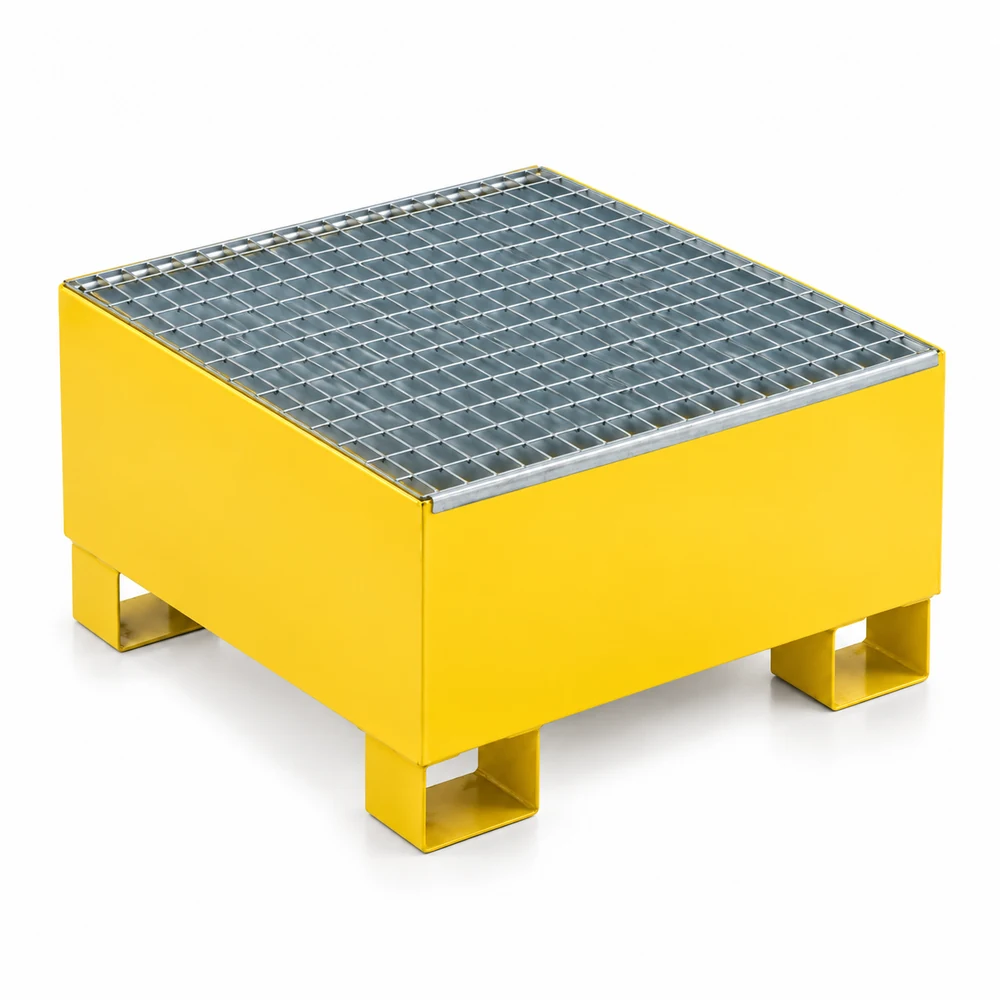

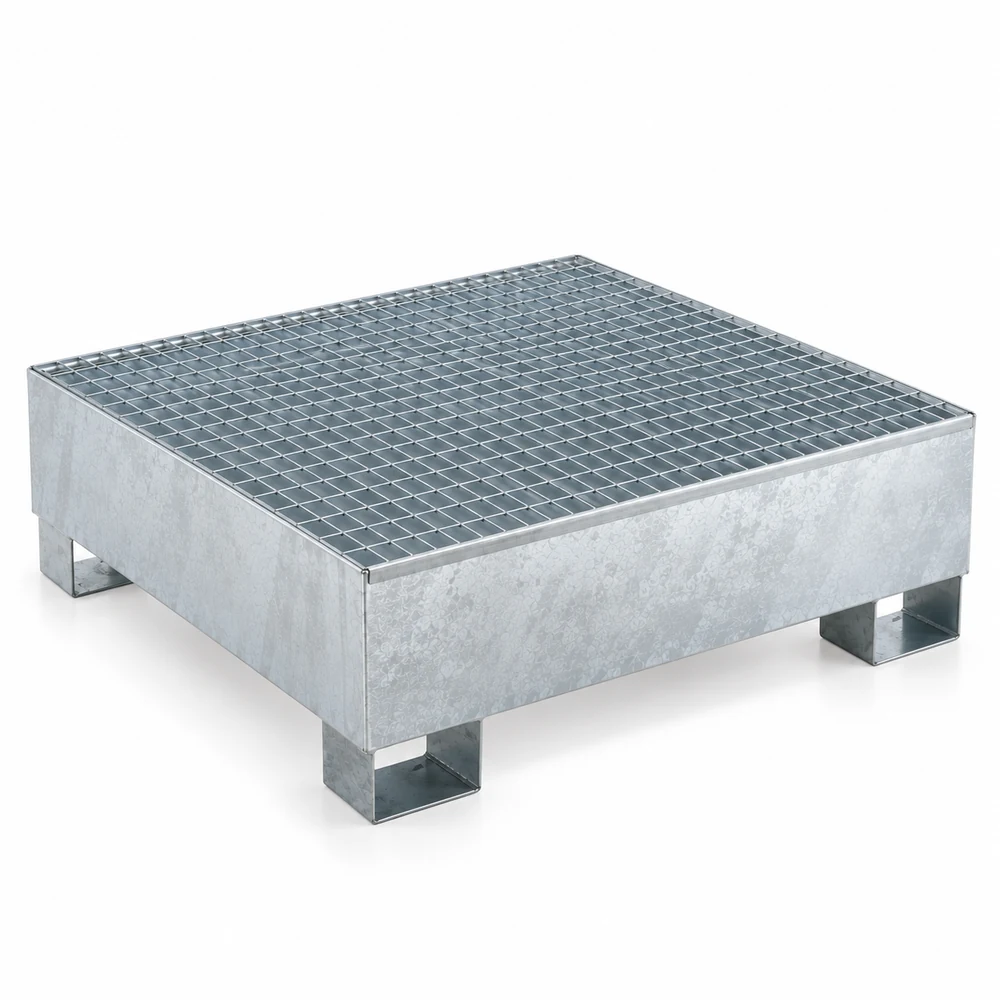

Seven steel pallets, from one drum to two IBC tanks. All are double-layer 3 mm sheet steel, powder coated red, yellow or blue, or hot-dip galvanised.
Footprints drawn to one scale, with the drums or IBCs each one takes. The bar is the sump against the largest in the range.
| Item photo | Model | Dimensions | Sump | Load | Weight |
|---|---|---|---|---|---|

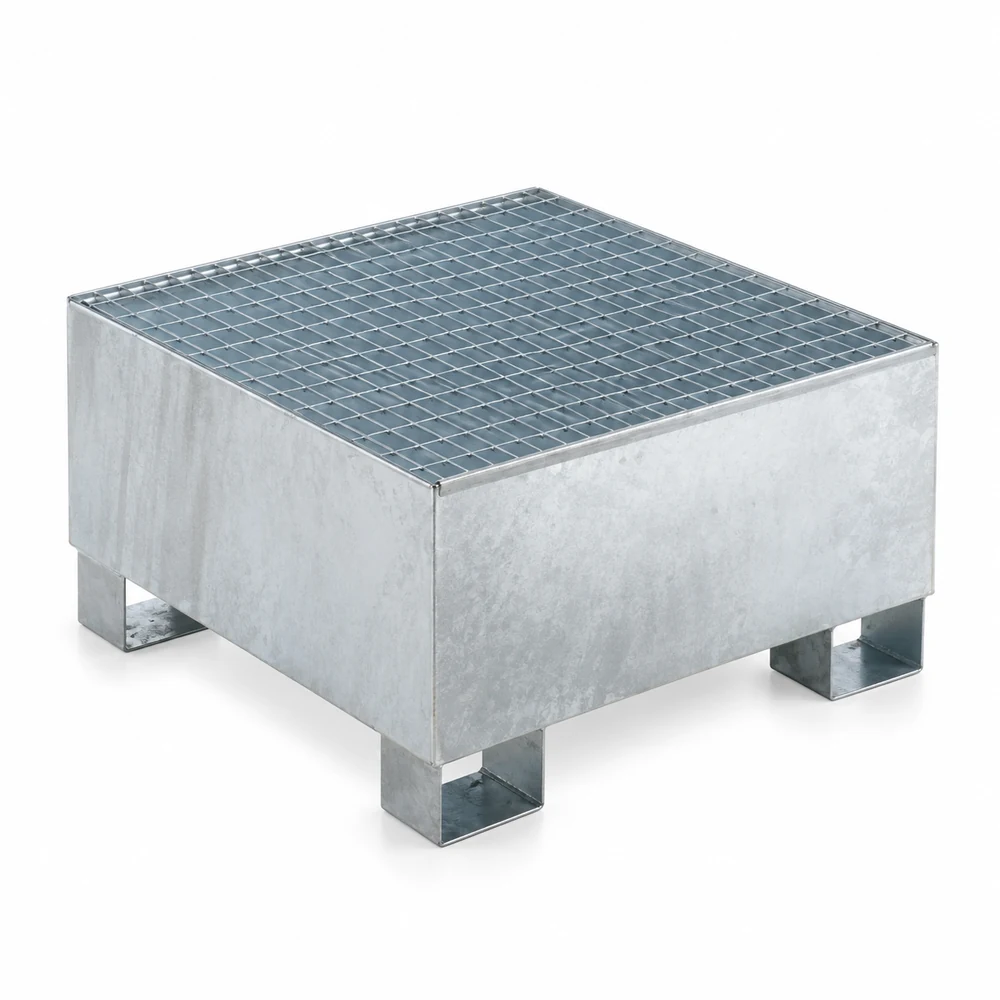

| F21-ST-101 · Single-drum, fixed | 80 × 80 × 46.5 cm | 203 L | 220 kg UDL | 65 kg |
| F21-ST-101 · Single-drum, mobile | 80 × 80 × 111.5 cm | 203 L | 220 kg UDL | 70 kg |

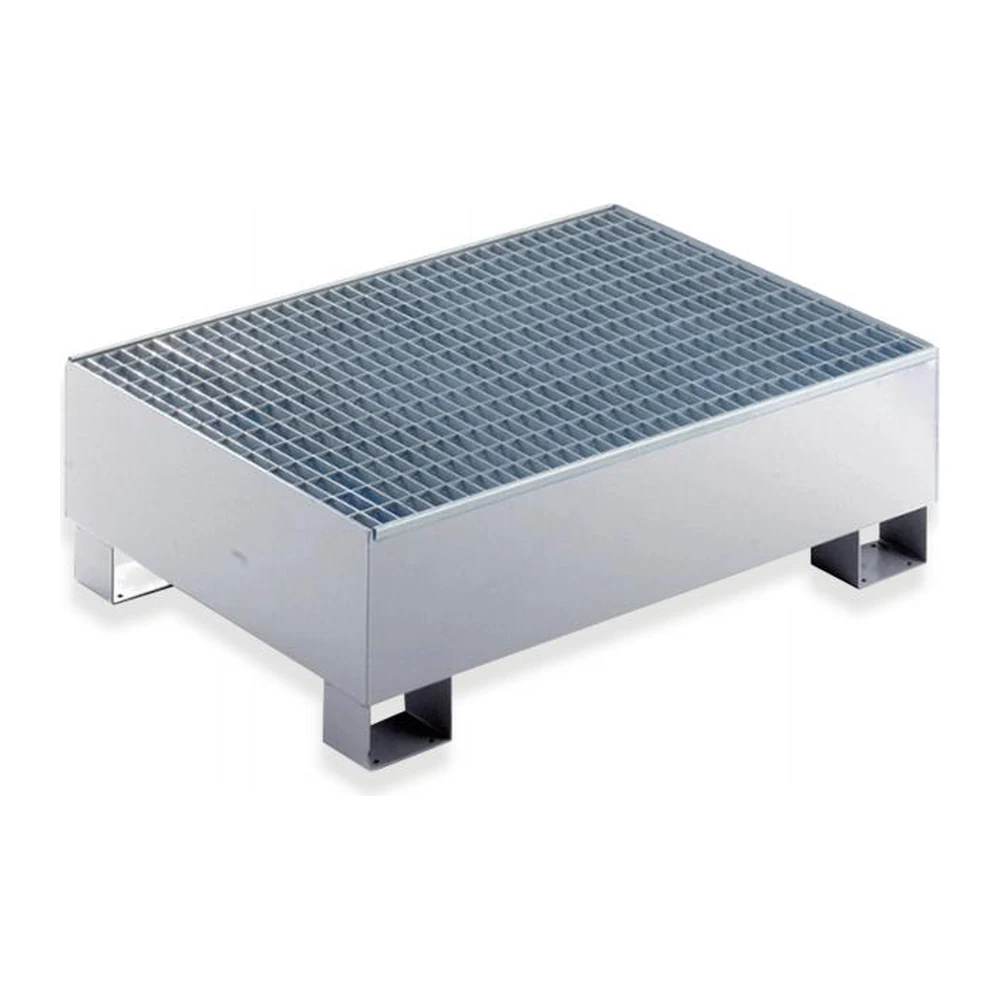

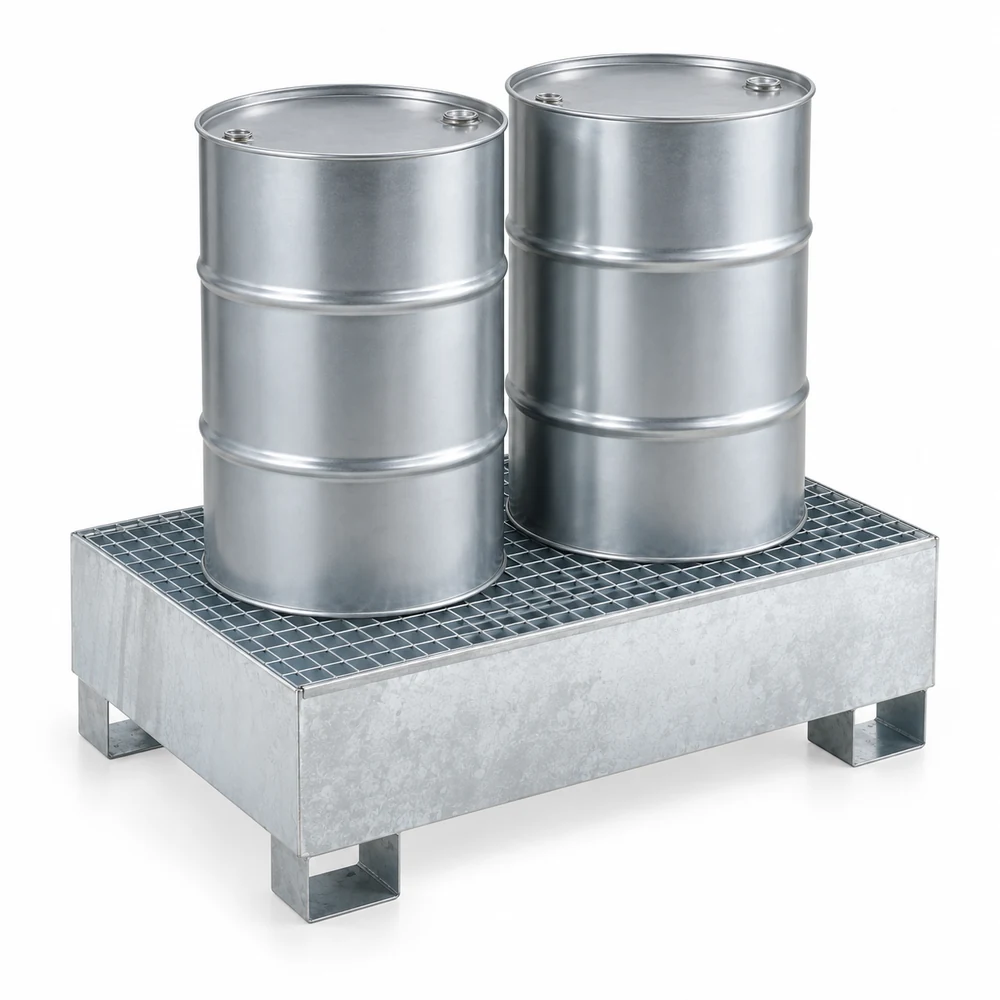

 | F21-ST-201 · Two-drum, fixed | 120 × 80 × 36 cm | 215 L | 440 kg UDL | 85 kg |
| F21-ST-201 · Two-drum, mobile | 120 × 80 × 111.5 cm | 215 L | 440 kg UDL | 90 kg |

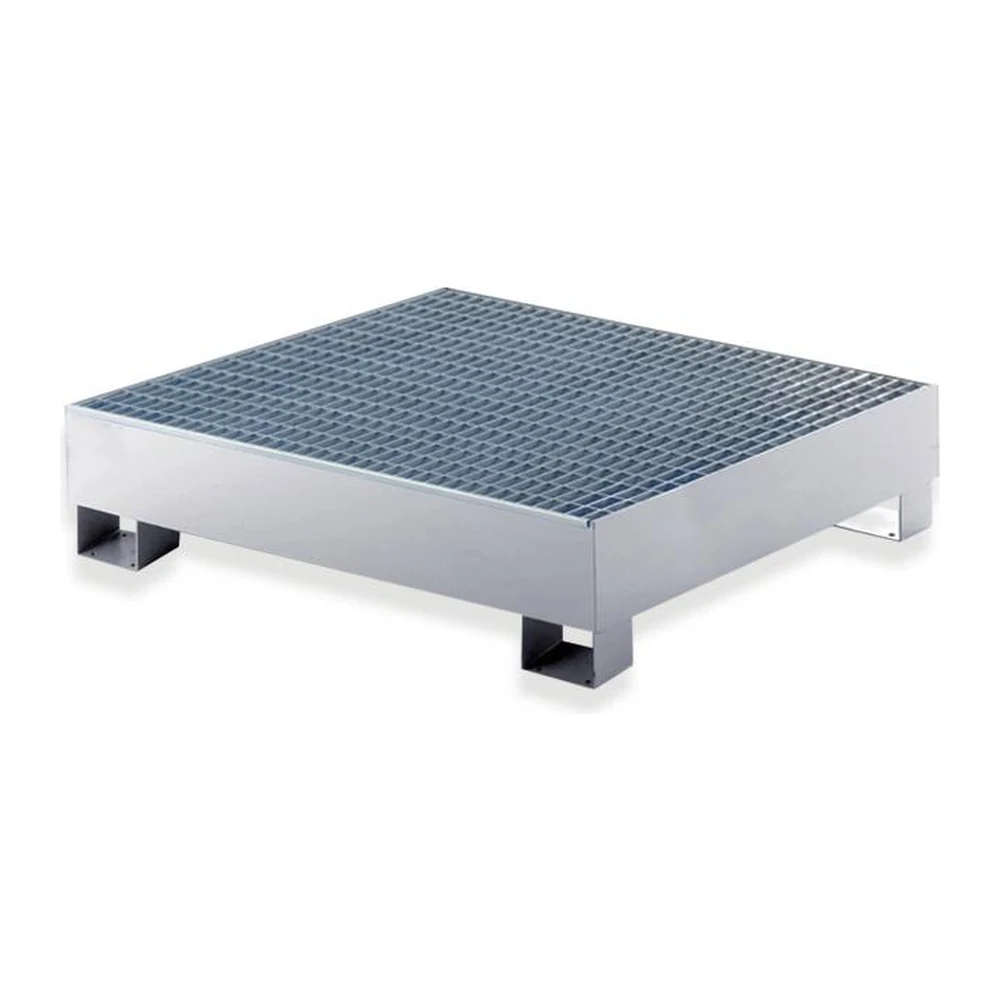

 | F21-ST-401 · Four-drum | 120 × 120 × 28.5 cm | 216 L | 960 kg UDL | 112 kg |

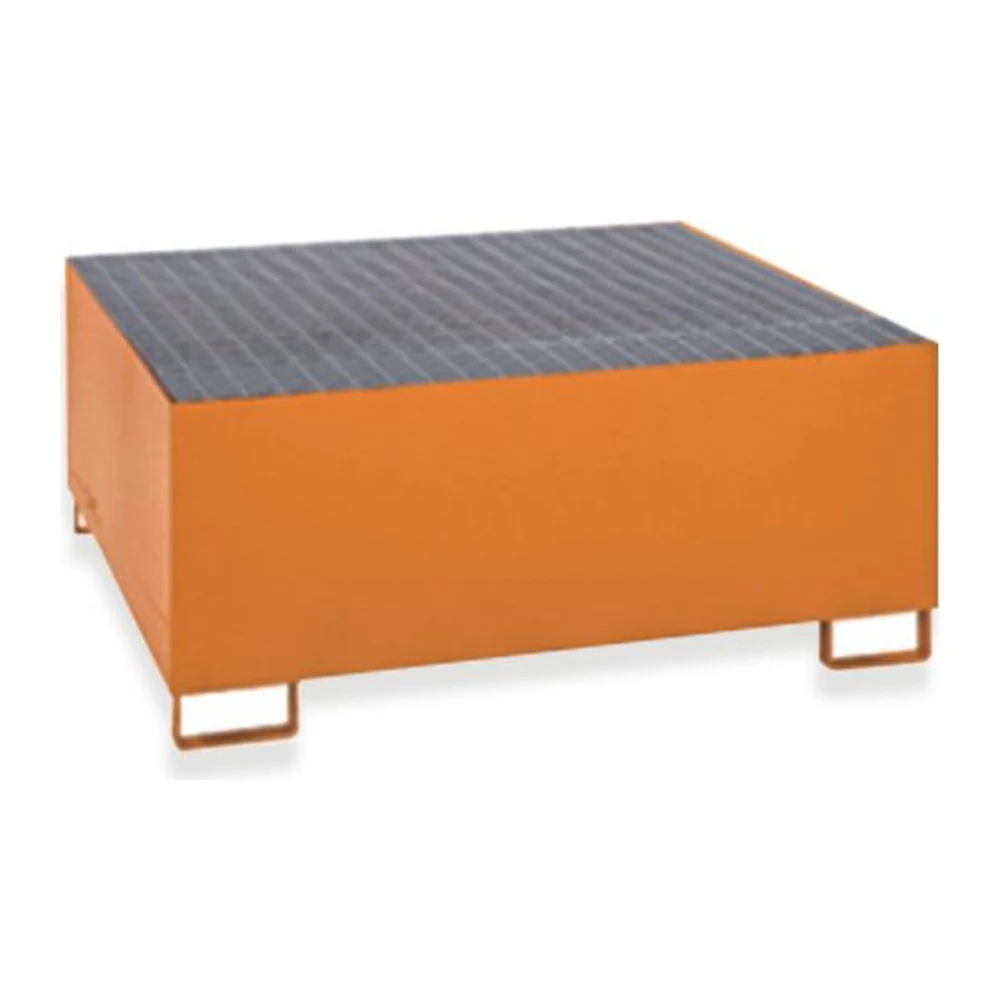

 | F21-ST-501 · Single IBC | 146 × 146 × 62 cm | 1,200 L | 1,900 kg UDL | 190 kg |
| F21-ST-501 · Double IBC | 265 × 130 × 43.5 cm | 1,400 L | 3,800 kg UDL | 250 kg |
Dimensions are length × width × height and weights are empty, both nominal. Load figures are the manufacturer’s published values; ask us for the test basis before you specify against them. The figure to check your containment rule against is the sump capacity, not the footprint.

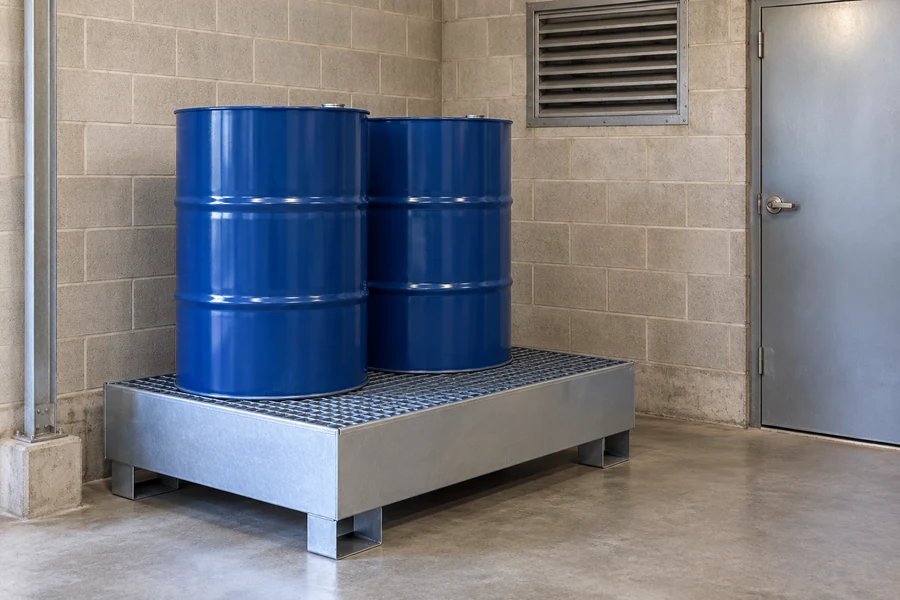

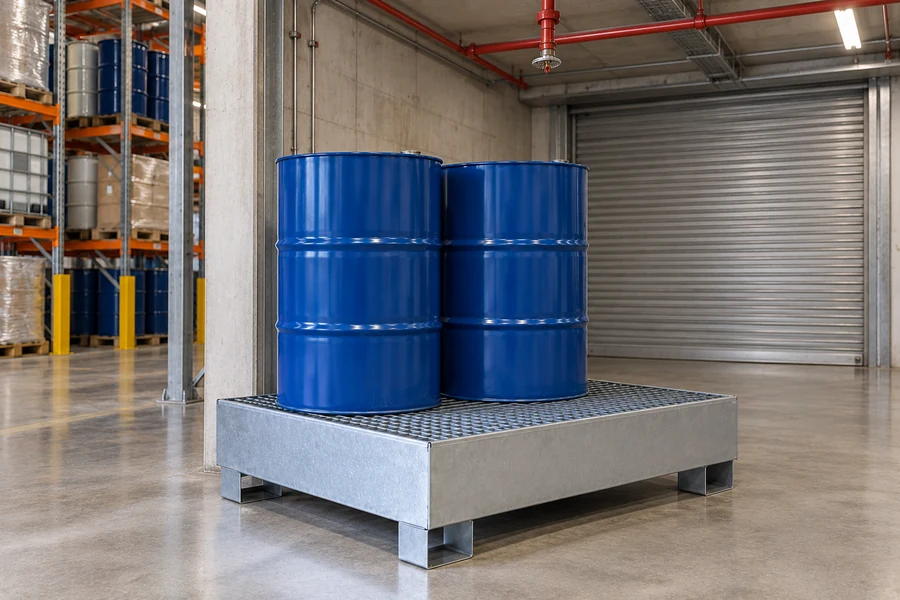

A flammable liquid store assessed against a fire scenario cannot have a polyethylene bund in it. Steel is the only answer to that question, and it is why this line exists alongside a cheaper plastic one.
Two layers of 3 mm sheet give the sump a floor that is independent of the load-bearing structure above it. A single-skin tray carries the drum weight through the same metal that has to stay liquid-tight.
Hot-dip galvanising for outdoor life and general service; powder coat where the colour codes the contents or the finish has to match a chemical. Tell us the liquid and we will say which.

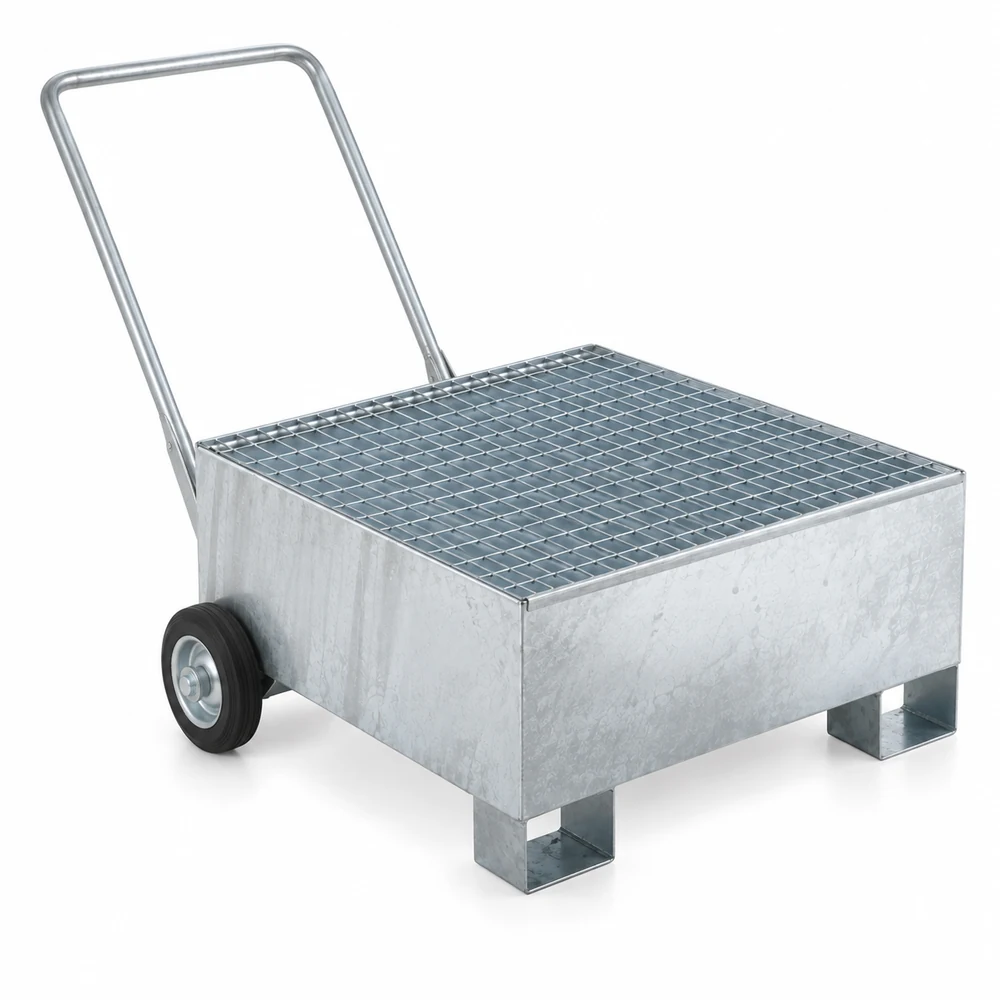

The wheeled single and two-drum versions keep the full sump volume and add a handle, so the bund travels with the drum.
Our distributors give their own buyers this same breakdown.
The regimes that apply to this type of container in each market we ship to, with the detail behind each one a click away. These are the market’s requirements; the specification above lists what this design already holds.
Orientation for specification, not legal advice, and not a statement that this design holds a given approval. Requirements turn on the exact design, contents and destination, and they change. Tell us the market at enquiry and we confirm what applies to your specification, what we hold and what we would need to obtain.

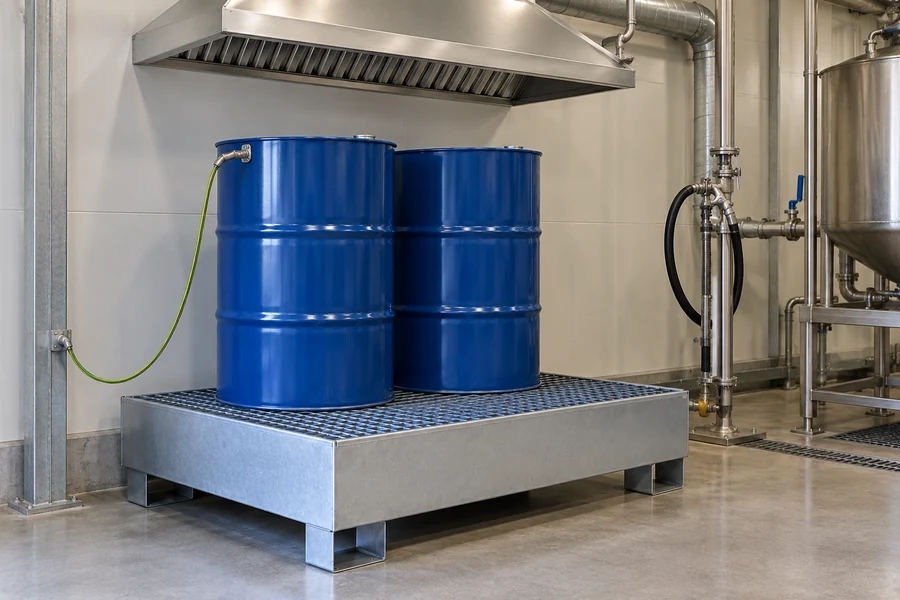

One reason usually decides it: a flammable liquid store assessed against a fire scenario cannot have a combustible bund in it. Steel is the only answer to that question. The second reason is solvents, which craze polyethylene that holds detergent without trouble.
Two layers of 3 millimetre sheet, so the sump floor is independent of the structure carrying the drum weight. A single-skin tray carries the load through the same metal that has to stay liquid-tight, which is where a cheap steel bund fails.
Hot-dip galvanising for outdoor life and general service. Powder coat, in red, yellow or blue, where the colour codes the contents or the finish has to suit a particular chemical. Tell us the liquid and we will say which applies.
No. Steel is non-combustible, which is a different property. Acids and some aqueous salts attack both galvanising and powder coat, and a corroded sump leaks at the seam where nobody is looking. Confirm the coating against your contents before you specify.
The single and two-drum models are available with wheels and a handle, and they keep the full sump volume. The drum models have a 100 millimetre forklifting height for pallet-truck handling. The IBC models are fixed installations at 190 and 250 kilograms empty.
203 litres on the single-drum, 215 on the two-drum, 216 on the four-drum, and 1,200 or 1,400 litres on the IBC models. The four-drum pallet holds barely more than the single: a steel bund is sized for a burst container, not for the sum of what stands on it.
Quoted against your order. Steel pallets are heavy, 65 to 250 kilograms empty, so the freight is a material part of the landed cost and we quote it with the product rather than after it.
